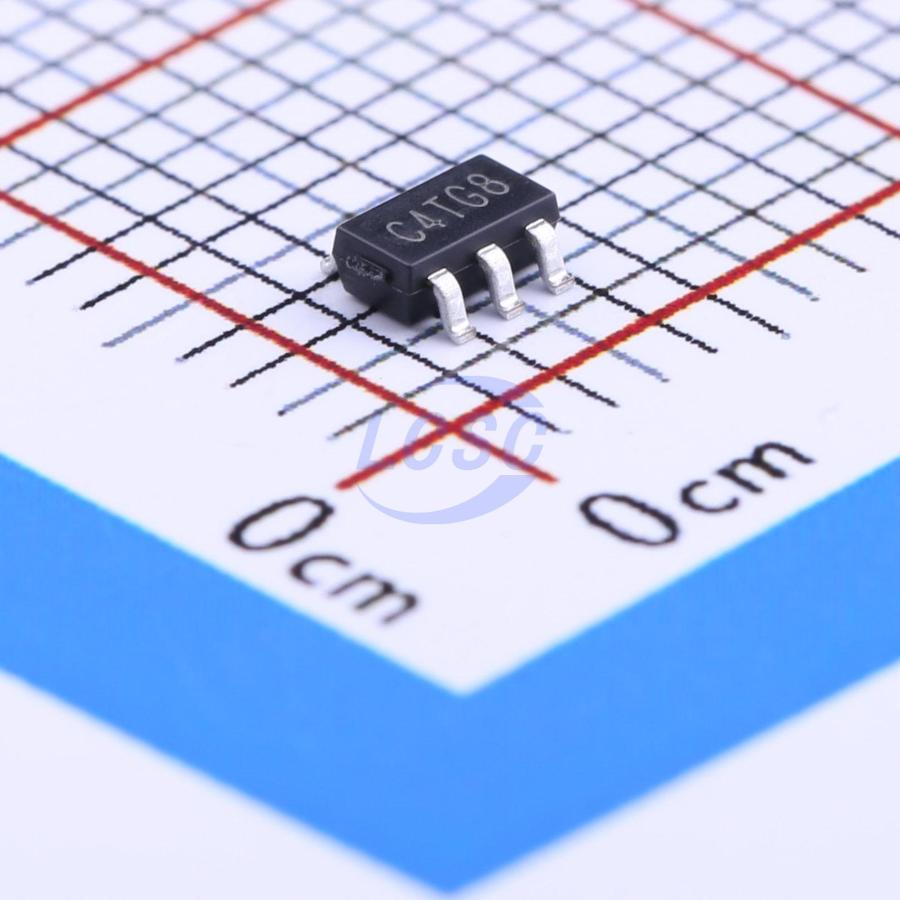

TP1941-TR
Rail-to-Rail Input, Rail-to-Rail Output 600uV 6pA 1 SOT-23-5 Linear Comparators
68ns, 1.8V, Ultra-low Power, RRI, Push-Pull Output Comparators
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP1941-TR
- Store part #
- C155445
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,750 in stock
#C155445
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.25 | ₹181.25 |
| 50+ | ₹28.03 | ₹1,401.50 |
| 150+ | ₹23.92 | ₹3,588.00 |
| 500+ | ₹20.84 | ₹10,420.00 |
| 3,000+ | ₹18.36 | ₹55,080.00 |
| 6,000+ | ₹17.13 | ₹1,02,780.00 |
5 × ₹36.25
₹181.25
excl. GST
₹213.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP1941-TR
₹181.25 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 46uA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 68ns
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;ESD protection
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Input Hysteresis Voltage (Vhys)
- 6mV
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 600uV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 0.3uV/℃
- Input Offset Current(Ios)
- 4pA
- Response Time (tr)
- 5ns
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The TP194x families of CMOS/TTL compatible comparators are offered in single, dual, and quad configurations, and are exceptionally versatile and easy to use. The TP194x incorporate proprietary and patented design techniques to achieve the ultimate combination of high-speed (68ns propagation delay under 1.8~5.5V wide supply range) and low power consuming (46μA quiescent current per comparator). These comparators are optimized for low power 1.8V, single-supply applications with greater than rail-to-rail input operation, and also operate with ±0.9V to ±2.75V dual supplies. The input common mode voltage range extends 200mV below ground and 200mV above supply, allowing both ground and supply sensing. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The push-pull output supports rail-to-rail output swing, and interfaces with CMOS/TTL logic. The output toggle frequency can reach a typical of 4 MHz while limiting supply current surges and dynamic power consumption during switching. The TP1941 single comparators are available in shout-down function, output latch version, and the tiny SC70/SOT23 package for space-conservative designs. All devices are specified for the temperature range of -40°C to +85°C.
Applications
- High-speed Line or Digital Line Receivers
- High Speed Sampling Circuits
- Peak and Zero-crossing Detectors
- Threshold Detectors/Discriminators
- Sensing at Ground or Supply Line
- Logic Level Shifting or Translation
- Window Comparators
- IR Receivers
- Clock and Data Signal Restoration
- Telecom, Portable Communications
- Portable and Battery Powered Systems
Key features
- Fast Response Time: 68 ns Propagation Delay
- Ultra-Low Supply Current: 46 μA per Channel
- Offset Voltage: ± 3.0 mV Maximum
- Offset Voltage Temperature Drift: 0.3 μV/°C
- Input Bias Current: 6 pA Typical
- Internal Hysteresis Ensures Clean Switching
- Input Common-Mode Range Extends 200 mV
- No Phase Reversal for Overdriven Inputs
- Push-Pull, CMOS/TTL Compatible Output
- Shut-down Function (TP1941N Only)
- Output Latch (TP1941NU Only)
- Down to 1.8V Supply Voltage: 1.8V to 5.5V
- Green, Space-Saving SC70 Package Available
