TECH PUBLICDatasheet (PDF)

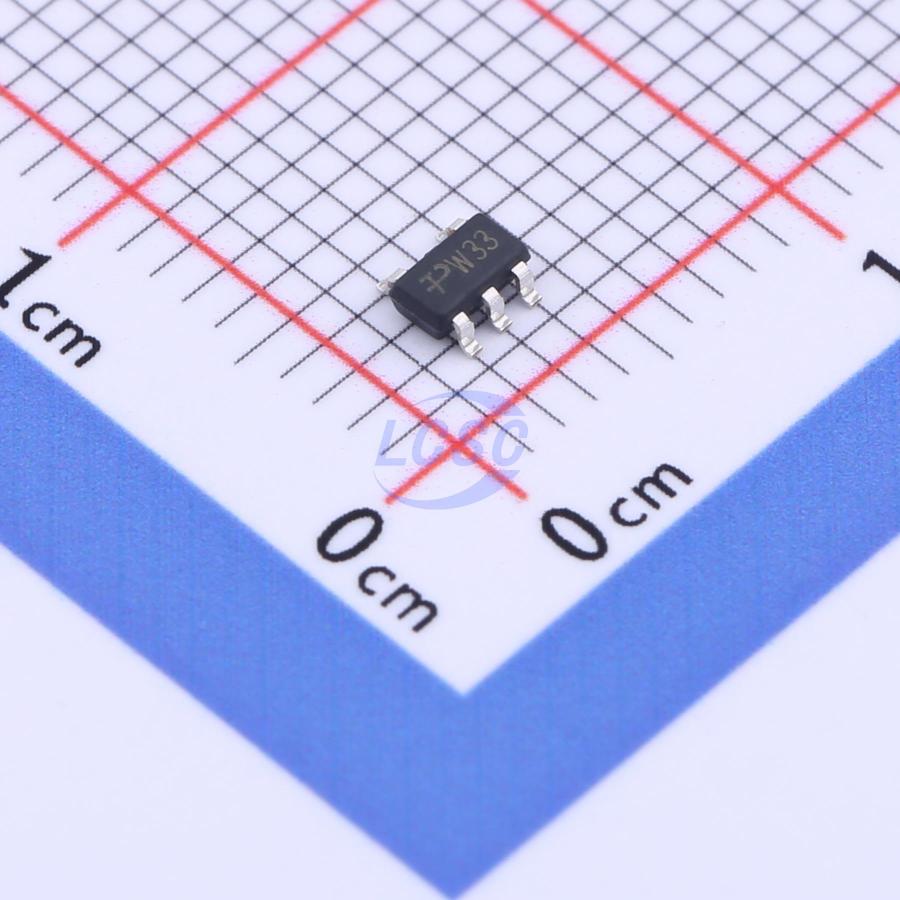

TP2036-3.3YN5
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Fixed Resistor Parameter Description
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP2036-3.3YN5
- Store part #
- C2987078
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,090 in stock
#C2987078
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.59 | ₹67.95 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.11 | ₹4,055.00 |
| 3,000+ | ₹6.99 | ₹20,970.00 |
| 6,000+ | ₹6.55 | ₹39,300.00 |
5 × ₹13.59
₹67.95
excl. GST
₹80.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2036-3.3YN5
₹67.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TP2036 series are a group of low-dropout (LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5V, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 400mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 0.8V, 0.9V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Adjustable Output Voltage Available by Specific Application
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT - 23 - 5 Packages Available
