MICROCHIPDatasheet (PDF)

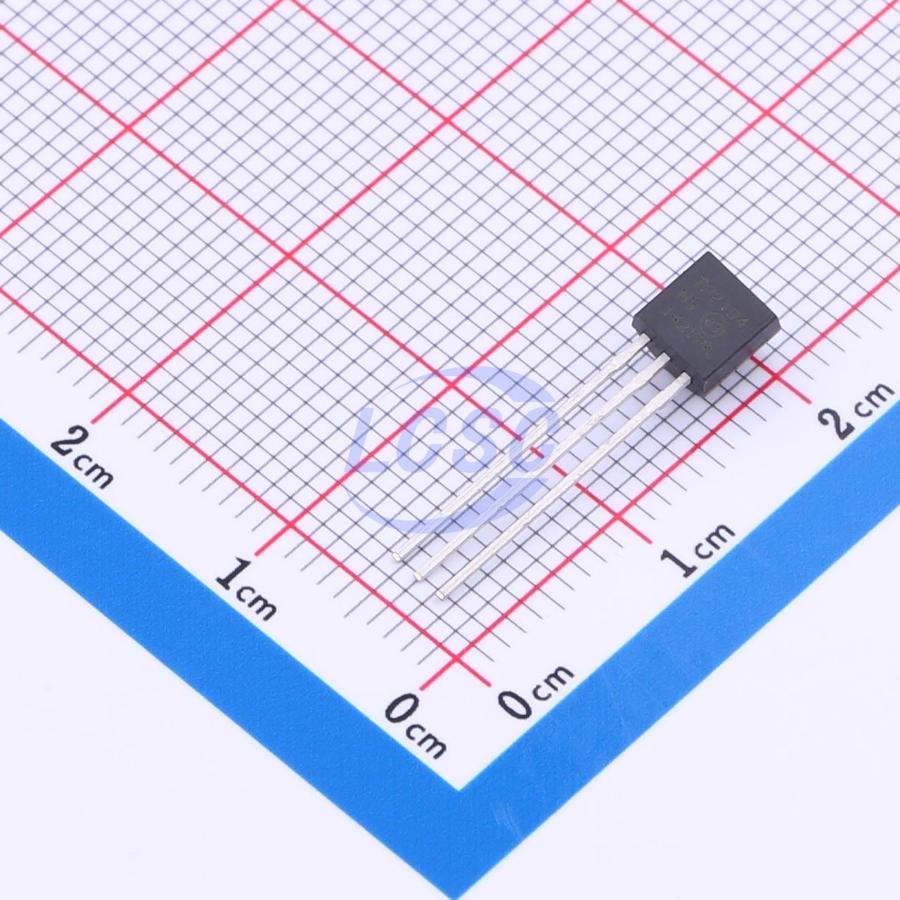

TP2104N3-G
740mW 40V 175mA 6Ω@10V 1 P-Channel P-Channel TO-92-3 Single FETs, MOSFETs RoHS
TO-92-3ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TP2104N3-G
- Store part #
- C632588
- Package / case
- TO-92-3
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C632588
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹191.52 | ₹191.52 |
| 10+ | ₹188.29 | ₹1,882.90 |
| 30+ | ₹186.36 | ₹5,590.80 |
| 100+ | ₹184.21 | ₹18,421.00 |
1 × ₹191.52
₹191.52
excl. GST
₹225.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
TP2104N3-G
₹191.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 22pF
- Ciss-Input Capacitance
- 60pF
- Pd - Power Dissipation
- 740mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 175mA
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 6Ω@10V
- Number
- 1 P-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The TP2104 low-threshold enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and a well-established silicon-gate manufacturing process. This combination yields a device that offers the power-handling capability of bipolar transistors along with the inherently high input impedance and positive temperature coefficient characteristics of MOS devices. As with all MOS structures, this device is immune to thermal runaway and thermally induced second breakdown. Microchip's vertical DMOS FETs are ideal for a wide range of switching and amplification applications requiring very low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speed.
Applications
- Logic level interface (TTL and CMOS compatible)
- Solid-state relay
- Analog switch
- Power management
- Telecom switch
Key features
- High input impedance and high gain
- Low gate drive power requirement
- Easy parallel operation
- Low input capacitance (CISS) and fast switching speed
- Excellent thermal stability
- Integrated body diode
- No secondary breakdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP2104N3-G-P003#C629202MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 499 | ₹231.27 · 499 in stock | View |
| ZVP4424ASTZ#C3277950DIODES · TO-92 | DIODES | TO-92 | 10 | ₹132.54 · 10 in stock | View | |
 | TP0604N3-G#C632585MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 2 | ₹252.07 · 2 in stock | View |
 | ZVP2106ASTZ#C780910DIODES · TO-92-3 | DIODES | TO-92-3 | On request | ₹75.85 · 0 in stock | View |
 | TP2640N3-G#C632592MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 4 | ₹670.97 · 4 in stock | View |
