TP2522N8-G

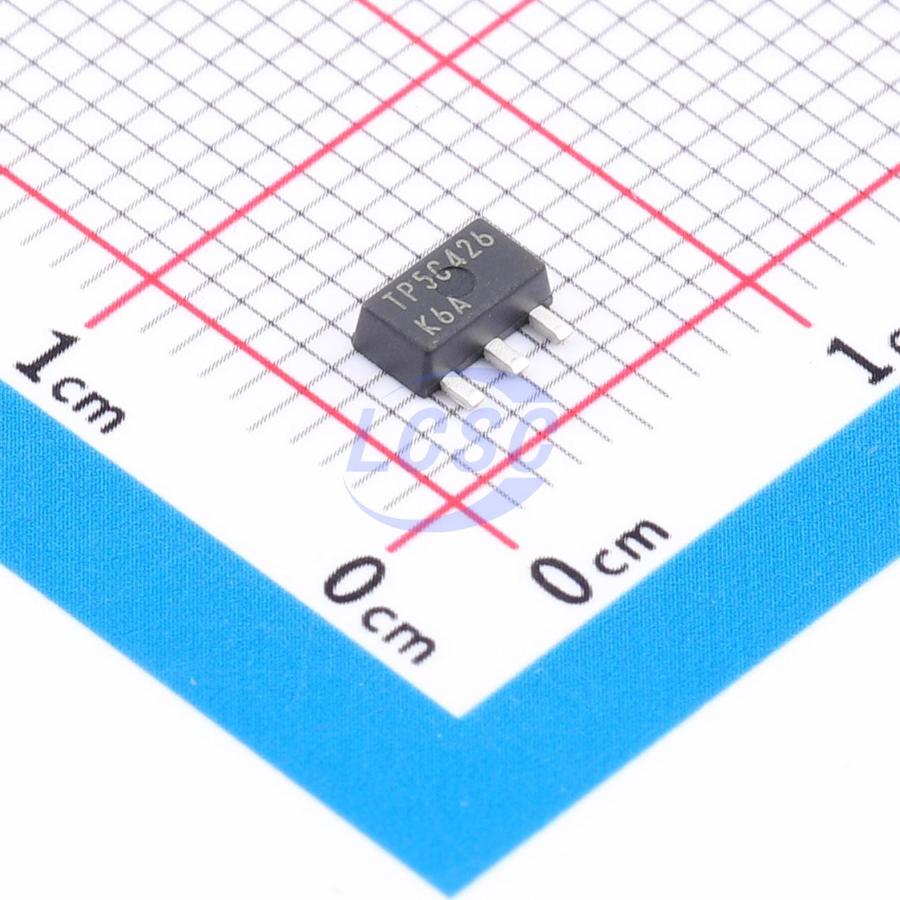

1.6W 220V 750mA 12Ω@10V 1 P-Channel P-Channel SOT-89-3 Single FETs, MOSFETs RoHS
SOT-89-3ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TP2522N8-G
- Store part #
- C629207
- Package / case
- SOT-89-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C629207
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹755.51 | ₹755.51 |
| 10+ | ₹744.98 | ₹7,449.80 |
| 30+ | ₹737.89 | ₹22,136.70 |
| 100+ | ₹731.01 | ₹73,101.00 |
1 × ₹755.51
₹755.51
excl. GST
₹891.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TP2522N8-G
₹755.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 125pF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 220V
- Current - Continuous Drain(Id)
- 750mA
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 12Ω@10V
- Number
- 1 P-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
The TP2522 low-threshold enhancement-mode (normally-off) transistor employs a vertical double-diffused metal-oxide-semiconductor (DMOS) structure with a mature silicon-gate fabrication process. This combination provides the device with the power-handling capability of bipolar transistors, along with the high input impedance and positive temperature coefficient inherent to MOS devices. As with all MOS structures, the device is immune to thermal runaway and thermally induced second breakdown. Microchip's vertical DMOS FETs are ideally suited for a wide range of switching and amplification applications requiring ultra-low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speed.
Applications
- Logic level interface (TTL and CMOS compatible)
- Solid state relay
- Battery-powered systems
- Photovoltaic drivers
- Analog switches
- General-purpose line drivers
- Telecom switches
Key features
- Maximum low threshold 2.4V
- High input impedance
- Maximum low input capacitance 125pF
- Fast switching speed
- Low on-resistance
- No secondary breakdown
- Low input and output leakage current
