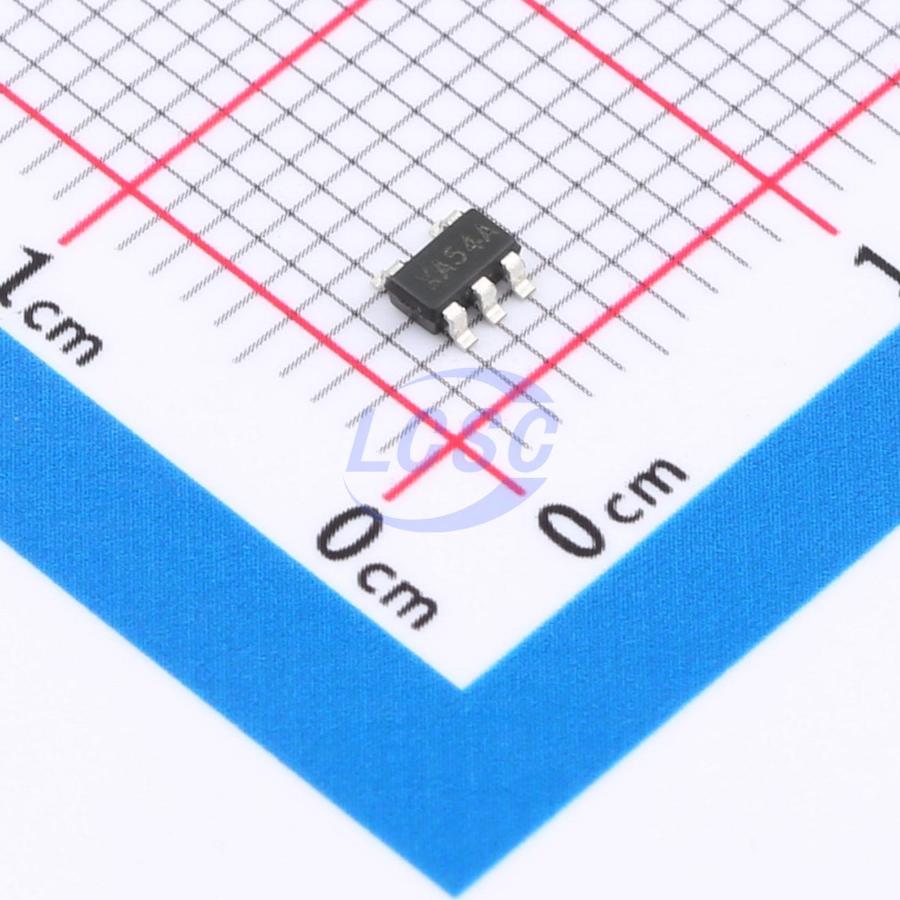

TP402C50S5
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-5
SOT-23-5RoHSActive
High Voltage Low Power LDO
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP402C50S5
- Store part #
- C48886813
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C48886813
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.89 | ₹84.45 |
| 50+ | ₹14.83 | ₹741.50 |
| 150+ | ₹13.93 | ₹2,089.50 |
| 500+ | ₹12.83 | ₹6,415.00 |
| 3,000+ | ₹12.33 | ₹36,990.00 |
| 6,000+ | ₹12.04 | ₹72,240.00 |
5 × ₹16.89
₹84.45
excl. GST
₹99.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP402C50S5
₹84.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 38V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Applications
- Industrial control
- Home automation
- Wireless power tools
- Motor drive and control boards
Key features
- Typical no-load current: 1.5 μA
- Output accuracy: +2%
- Output current: 250mA
- Built-in current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP362C50S5-1#C3011182TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 450 | ₹30.18 · 450 in stock | View |
