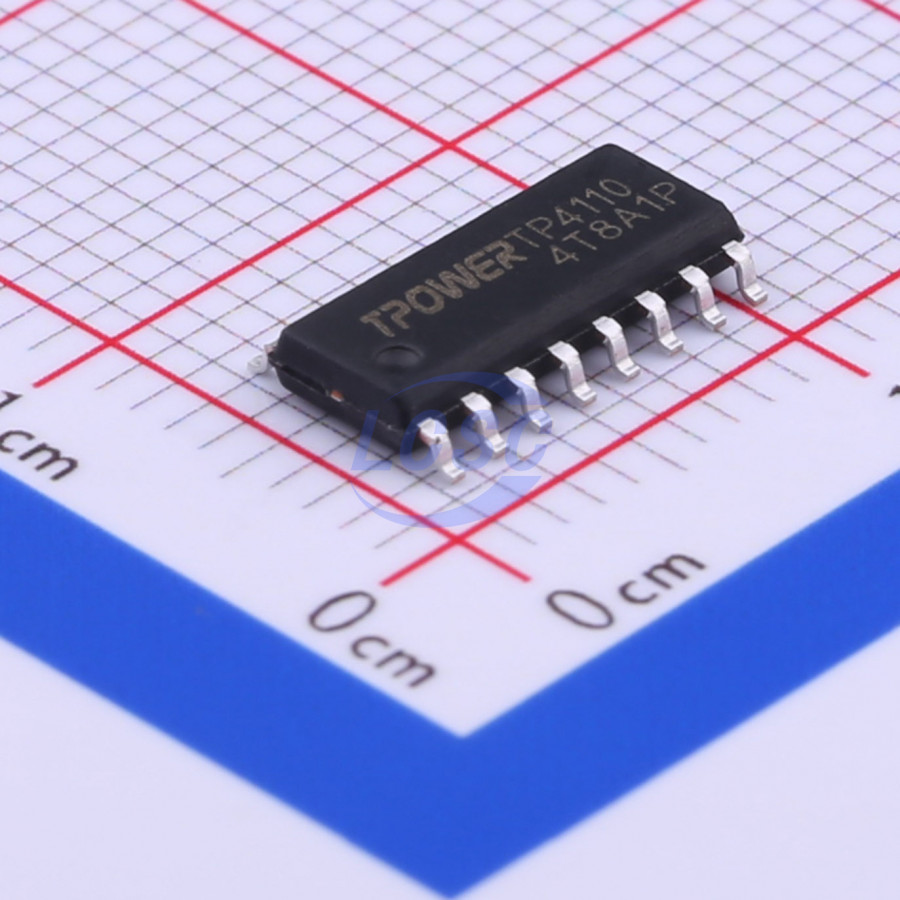

TP4110
4.5V~12V SOP-16 Power Management - Specialized
SOP-16RoHSSold out at source
Portable USB fan solution
- Manufacturer
- TPOWER
- Manufacturer part #
- TP4110
- Store part #
- C382136
- Package / case
- SOP-16
- Category
- Power Management - Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,450 in stock
#C382136
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.92 | ₹94.60 |
| 50+ | ₹16.75 | ₹837.50 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹14.65 | ₹7,325.00 |
| 2,500+ | ₹14.13 | ₹35,325.00 |
| 4,000+ | ₹13.81 | ₹55,240.00 |
5 × ₹18.92
₹94.60
excl. GST
₹111.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP4110
₹94.60 for 5 + GST
Specifications
- Features
- Operating status indication
- Operating Temperature
- -20℃~+85℃
- Output Voltage
- 4.5V~12V
- Voltage - Supply
- 4.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
Applications
- Portable USB fan
Key features
- Single-chip solution designed for portable USB charging fans, integrating charge management, boost management, protection, button control, and gear indication modules
- Fixed charging current of 0.8A, output voltage 4.5V~12V, 3-gear operating modes, supports selectable first-gear maximum or first-gear minimum mode
- Charging current: 0.8A
- Output voltage: 4.5V~12V adjustable
- Output current: 0.7A@9V
- Externally configurable first-gear maximum or first-gear minimum mode
- Single-button or dual-button support
- Charging indicator LED
- 3-gear status indicator LEDs
- Maximum 50uA standby current
- Flashlight support
- Intelligent temperature control with over-temperature protection
- Integrated output overvoltage protection and short-circuit protection
- Integrated overcharge and over-discharge protection
- Package: SOP16L
