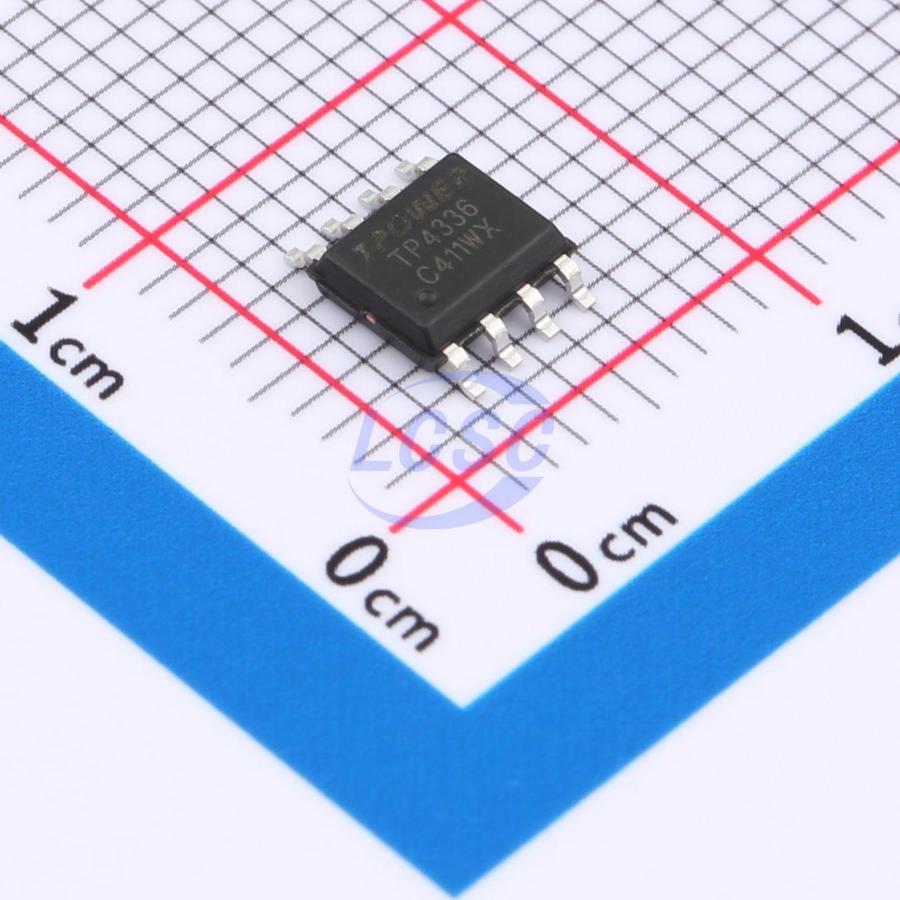

TP4336

The TP4336 is a single-chip power management SOC integrating linear charge management, synchronous boost conversion, battery level indication, and multiple protection functions, providing a complete single-chip power solution for lithium battery-powered devices such as power banks. The TP4336 integrates a linear charge management module, a synchronous boost discharge management module, a battery level detection and LED indication module, and multiple protection modules. It features built-in charge and discharge power MOSFETs with a fixed charge current of 1A. The maximum synchronous boost output current is 1A, and the light-load shutdown current for discharge loads is 50mA. The TP4336 features ultra-low standby power consumption. With the chip powered down and the load open-circuited, the standby current can be as low as 14uA. The TP4336 integrates multiple safety protection functions including temperature compensation, over-temperature protection, overcharge and over-discharge protection, output overvoltage protection, output overcurrent protection, and output short-circuit protection, ensuring the safety of both the chip and the lithium-ion battery. The TP4336 application circuit is simple, requiring minimal external components to implement a complete lithium battery charge/discharge solution, significantly reducing system cost and board space.

Applications

• Power banks
• Lithium battery electronics and other low-power power management applications

Key features

• Linear charging with synchronous boost
• Integrated power path management, supports pass-through charging
• 93% discharge efficiency at 1A output
• Maximum boost output current 1A
• Charging current 1A
• Standby current as low as 14uA
• Light-load shutdown current 50mA
• Automatic load detection power on/off
• Single press to power on, double press to power off
• Flashlight output support
• Adaptive charging current technology
• Intelligent temperature control with over-temperature protection
• Package: ESOP-8L
