TP4554B

TP4554B is a single-chip power management SOC integrating linear charge management, synchronous boost conversion, battery level indication, and multiple protection functions, providing a complete single-chip power solution for lithium battery charging and discharging. TP4554B internally integrates a linear charge management module, a synchronous boost discharge management module, a battery level detection and LED indication module, and a protection module. TP4554B has built-in charging and discharging power MOSFETs, with a charging current of 250mA and a maximum synchronous boost output current of 500mA. TP4554B adopts a patented adaptive charging current technology, along with a patented control method that eliminates the need for external power setting resistors, reducing both power consumption and system cost. TP4554B internally integrates multiple safety protection features — including temperature compensation, over-temperature protection, overcharge and over-discharge protection, output overvoltage protection, output overcurrent protection, and output short-circuit protection — to ensure the safety of both the chip and the lithium-ion battery. TP4554B features a simple application circuit that requires minimal external components to implement a complete lithium battery charge/discharge solution, significantly reducing system cost and footprint.

Applications

• Bluetooth earphone charging case
• Lithium battery electronics
• Other low-power power management applications

Key features

• Linear charging with synchronous boost
• Integrated power path management, supports pass-through charging
• Maximum boost output current 500mA
• Charging current 250mA
• Boost output 5V always-on
• LED-off output current 5mA
• 5V always-on standby power consumption as low as 25μA
• Adaptive charging current technology
• Intelligent temperature control with over-temperature protection
• Supports trickle charging and zero-voltage charging
• Integrated multi-protection features

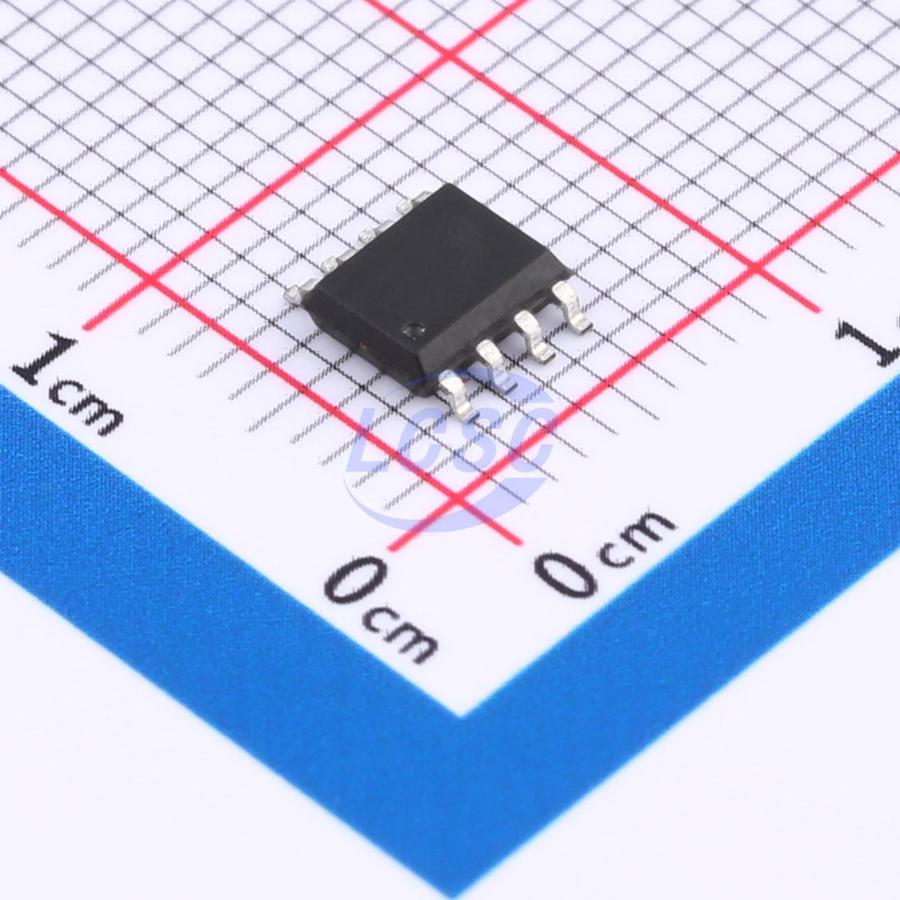

• Package: SOP8L
