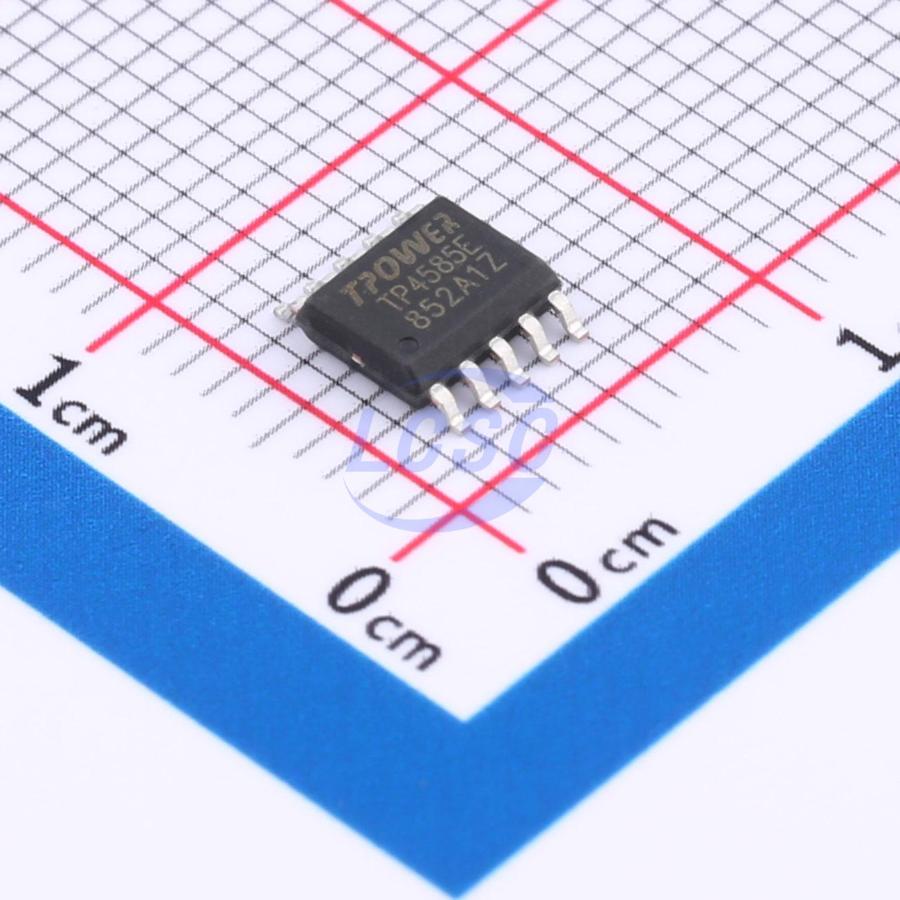

TPOWER

TP4585E

5.05V ESOP-10L Power Management - Specialized

ESOP-10LRoHSSold out at source

Dual-channel independently controlled TWS charging case solution

Manufacturer: TPOWER
Manufacturer part #: TP4585E
Store part #: C5464796
Package / case: ESOP-10L
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,145 in stock

#C5464796

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.10	₹90.50
50+	₹15.88	₹794.00
150+	₹14.92	₹2,238.00
500+	₹13.75	₹6,875.00
2,500+	₹13.22	₹33,050.00
4,000+	₹12.90	₹51,600.00

Quantity (min 5, multiples of 5)

5 × ₹18.10

₹90.50

excl. GST

₹106.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TP4585E

₹90.50 for 5 + GST

Specifications

Features: Overcurrent Protection;Protection latch;Operating status indication
Operating Temperature: -20℃~+85℃
Voltage - Supply: 4.5V~5.5V
Output Voltage: 5.05V

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.431 g

Overview

TP4585 is a single-chip power management SOC integrating linear charge management, synchronous boost conversion, battery level indication, and multiple protection functions, providing a complete single-chip power solution for charging and discharging of Bluetooth headset charging cases. TP4585 internally integrates a high-voltage linear charge management module, a synchronous boost discharge management module, a battery level detection and LED indication module, and multiple protection modules. TP4585 features built-in charge and discharge power MOSFETs, with a charging current of 230mA, a maximum synchronous boost output current of 500mA, and a light-load shutdown current of 7mA for discharge loads. TP4585 features extremely low standby power consumption. With the chip powered off and the load open-circuited, the standby current can be as low as 0.8uA. TP4585 internally integrates multiple safety protection features — including temperature compensation, over-temperature protection, overcharge and over-discharge protection, output overvoltage protection, output overcurrent protection, and output short-circuit protection — to ensure the safety of both the chip and the lithium-ion battery. The TP4585 application circuit is simple, requiring minimal external components to implement a complete lithium battery charge/discharge solution, significantly reducing system cost and footprint.
