TPOWERDatasheet (PDF)

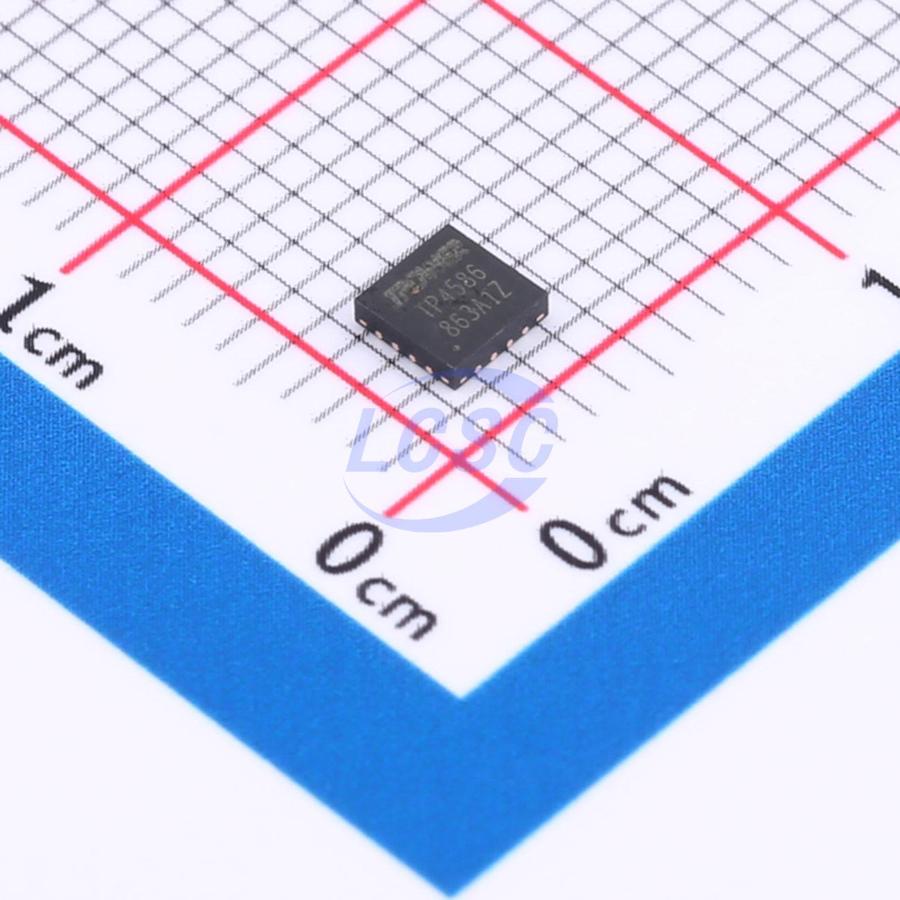

TP4586
5.05V QFN3x3-16 Power Management - Specialized
QFN3x3-16RoHSActive
Dual-channel independently controlled TWS charging case solution
- Manufacturer
- TPOWER
- Manufacturer part #
- TP4586
- Store part #
- C5464797
- Package / case
- QFN3x3-16
- Category
- Power Management - Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,235 in stock
#C5464797
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.49 | ₹97.45 |
| 50+ | ₹16.92 | ₹846.00 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹14.45 | ₹7,225.00 |
| 5,000+ | ₹14.08 | ₹70,400.00 |
5 × ₹19.49
₹97.45
excl. GST
₹114.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TP4586
₹97.45 for 5 + GST
Specifications
- Features
- Adjustable current limiting;Overcurrent Protection;Protection latch;Operating status indication
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Output Voltage
- 5.05V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.311 g
Overview
Applications
- Bluetooth earphone charging case
- Lithium battery electronic devices
- Other low-power power management applications
Key features
- Linear charging with synchronous boost
- Charging input withstand voltage up to 28V
- Dual independent VOL/VOR control
- Integrated power path management, supports pass-through charging
- Maximum boost output current 500mA
- Externally configurable charging current, up to 500mA
- VOL/VOR outputs support multiple configurable states for communication between charging case and earbuds
- Automatic load detection for power on/off
- Externally configurable light-load shutdown current
- Standby current as low as 0.8uA
- PFM operating mode with low output voltage ripple
- Adaptive charging current technology
- Intelligent thermal control with over-temperature protection
- Battery NTC temperature protection
- Package: QFN3x3-16L
