TECH PUBLICDatasheet (PDF)

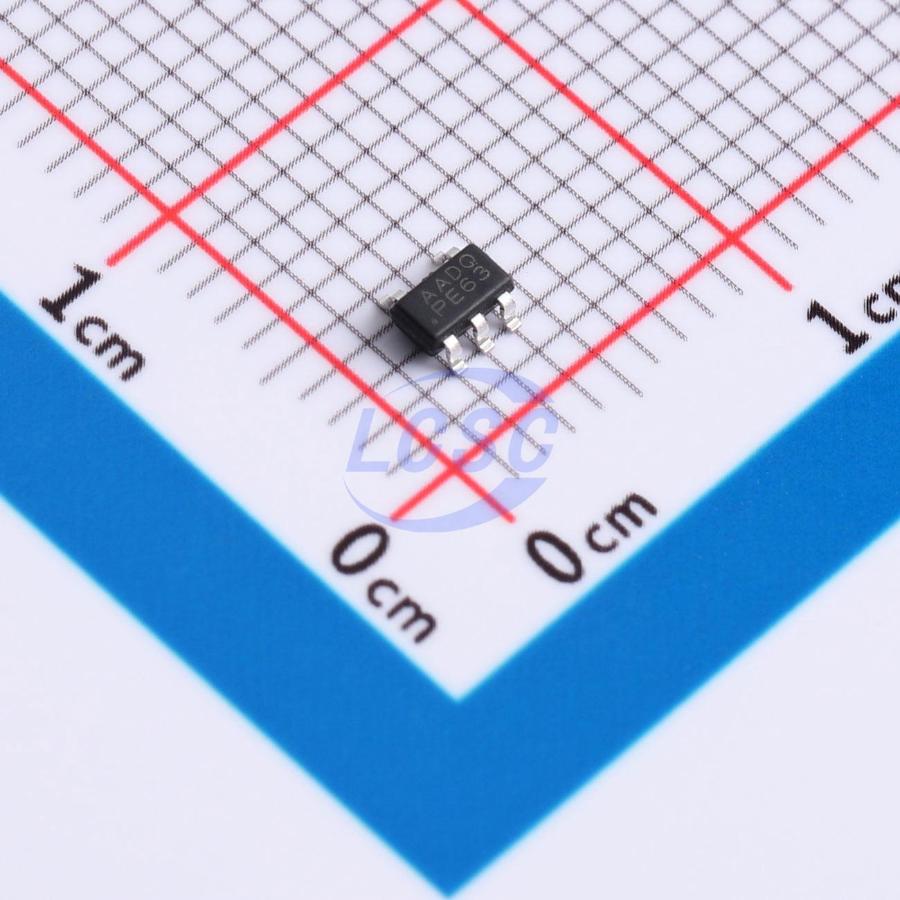

TP572CB2S5
12V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP572CB2S5
- Store part #
- C52817179
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,733 in stock
#C52817179
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.70 | ₹65.70 |
| 10+ | ₹51.39 | ₹513.90 |
| 30+ | ₹45.33 | ₹1,359.90 |
| 100+ | ₹37.73 | ₹3,773.00 |
| 500+ | ₹34.27 | ₹17,135.00 |
| 1,000+ | ₹32.31 | ₹32,310.00 |
1 × ₹65.70
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP572CB2S5
₹65.70 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 200mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
TP572C is a low-dropout (LDO) linear regulator with an enable function, offering the advantages of high input voltage, low dropout, low quiescent current, and compact packaging. Its quiescent current is as low as 2μA with zero shutdown current, making it ideal for extending battery life in battery-powered devices. The device maintains stability with ceramic output capacitors across a wide input voltage range of 2V to 60V and throughout the entire output load current range.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld computers, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- No-load ground current: 2μA
- Output accuracy: ±2%
- Output current: 200mA
- Wide input voltage range: 2V ~ 60V
- Dropout voltage: 0.65V at 100mA load current (VOUT = 5V)
- Fixed output voltage options: 1.8V, 3.3V, 5V, 9V, 12V
- Stable operation with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5, SOT89-3, SOT23-3L, DFN1X1-4 packages
