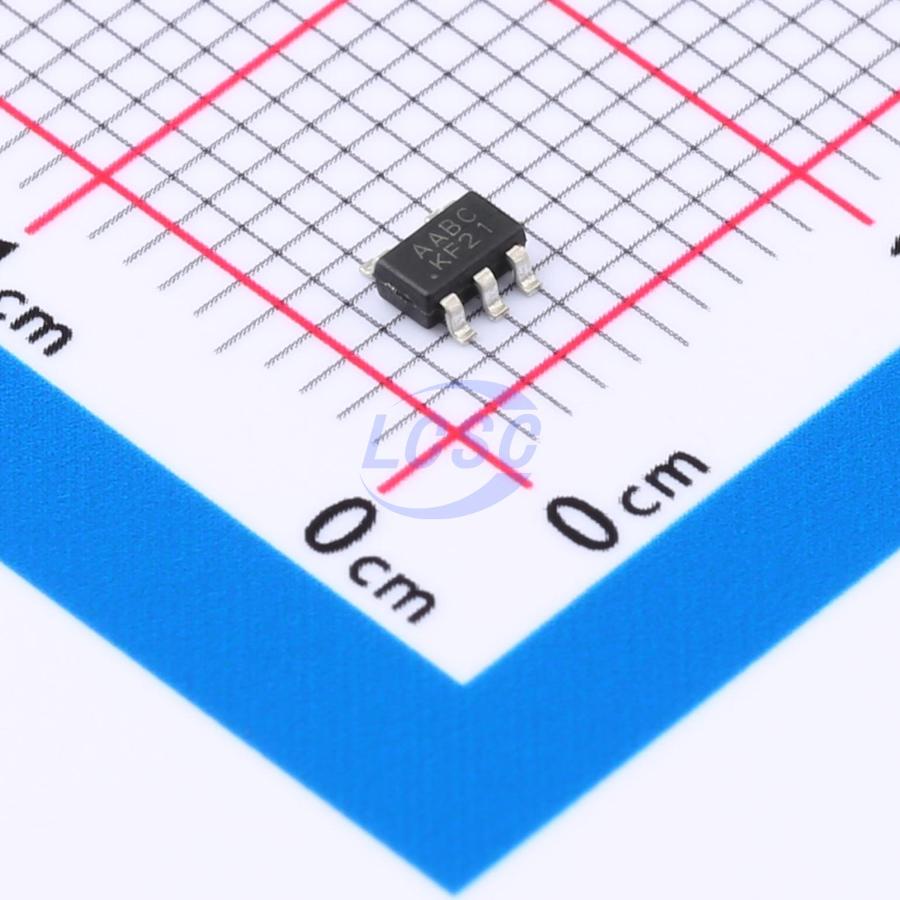

TP573CADJS5
Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
50V, 200mA, 2uA, High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP573CADJS5
- Store part #
- C5342389
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,365 in stock
#C5342389
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.02 | ₹175.10 |
| 50+ | ₹27.73 | ₹1,386.50 |
| 150+ | ₹24.61 | ₹3,691.50 |
| 500+ | ₹20.70 | ₹10,350.00 |
| 3,000+ | ₹17.26 | ₹51,780.00 |
| 6,000+ | ₹16.21 | ₹97,260.00 |
5 × ₹35.02
₹175.10
excl. GST
₹206.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP573CADJS5
₹175.10 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 50V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TP573C is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2μA and zero disable current is ideal for powering the battery equipment to a longer service life. The TP573C is stable with the ceramic output capacitor over its wide input range from 2V to 50V and the entire range of output load current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 200mA Output Current
- Wide Operating Input Voltage Range: 2V to 50V
- Dropout Voltage: 0.65V at 100mA (VoUT = 5V)
- Support Fixed Output Voltage 1.8V, 3.3V, 5V, 9V, 12V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT - 23 - 5 Package Available
