MT9700-N1 Active High 2A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
From
₹7.57
2,05,500 in stock
JingYangDatasheet (PDF)
TP6062FX

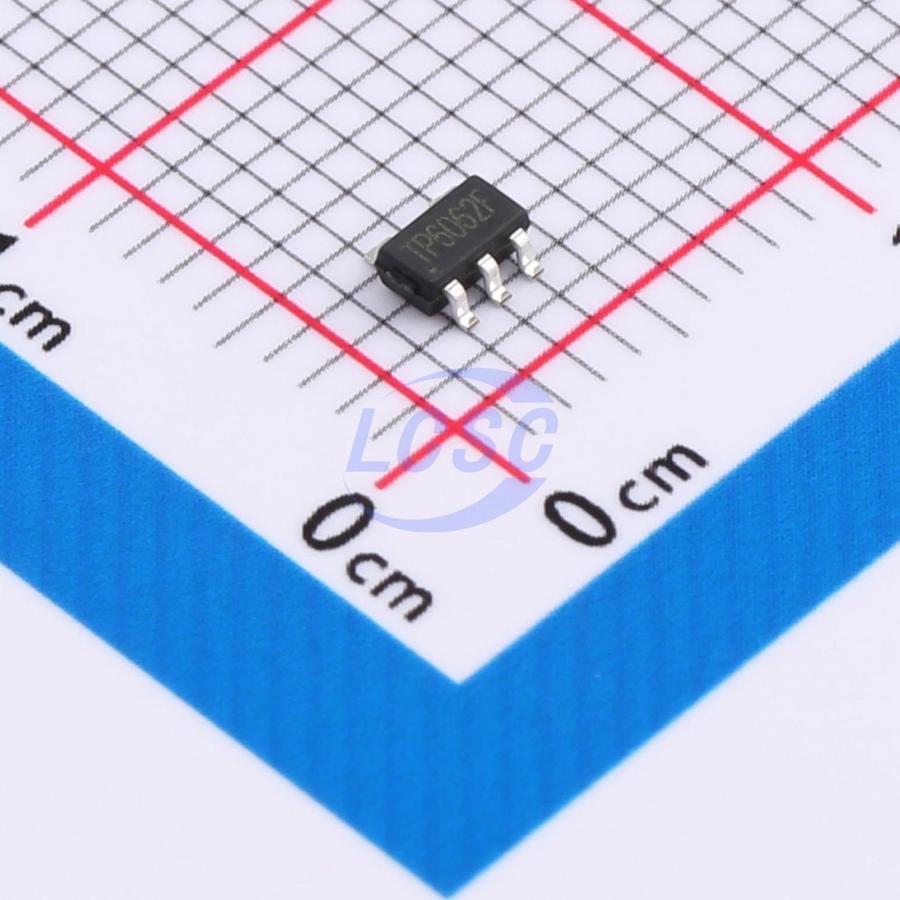

1 1.5A Active High High Side Switch SOT23-5 Power Distribution Switches, Load Drivers RoHS
SOT23-5ROHS CompliantActive
Low Loss Power Distribution Switch
- Manufacturer
- JingYang
- Manufacturer part #
- TP6062FX
- Store part #
- C5364041
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,600 in stock
#C5364041
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.78 | ₹98.90 |
| 50+ | ₹17.50 | ₹875.00 |
| 150+ | ₹16.52 | ₹2,478.00 |
| 500+ | ₹15.31 | ₹7,655.00 |
| 3,000+ | ₹14.76 | ₹44,280.00 |
| 6,000+ | ₹14.43 | ₹86,580.00 |
5 × ₹19.78
₹98.90
excl. GST
₹116.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6062FX
₹98.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Soft-start;Reverse voltage protection;Under-voltage lockout
- number of channels
- 1
- Maximum Continuous Current
- 1.5A
- Control Input Logic
- Active High
- RDS(on)
- 80mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The TP6062FX is a low voltage, single P-MOSFET high-side Power switch, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with inputs ranging from 2.5V to 5.5V, making it ideal for both 3V and 5V systems. The switch's low RDS(ON), 80mΩ meets USB Voltage Drop requirements. A built-in P-channel MOSFET with true shutdown function to eliminate any reversed current flow across the switch when it is powered off. When the output voltage is higher than input voltage, the power switch is turned off by internal output reverse-voltage comparator. FLG is an open-drain output report over-current or over temperature event. In addition, FLG also has typical 2.5ms deglitch timeout period and reports output reverse-voltage condition.
Applications
- USB Bus/Self Powered Hubs
- Battery-Charger Circuits
- Personal Communication Devices
- Notebook Computer
Key features
- Integrated 80mΩ Power MOSFET
- Low Supply Current
- 30uA Typical at Switch On State
- 0.1uA Typical at Switch Off State
- Wide Input Voltage Range: 2.5V to 5.5V
- Reverse Current Flow Blocking
- Deglitched Open-Drain Over-Current Flag Output (FLG)
- Continuous Load Current Thermal Shutdown Protection
- Hot Plug-In Application (Soft-Start)
- Output discharge function
- TP6062FX: Auto output discharge function
- SOT23-5 Package
