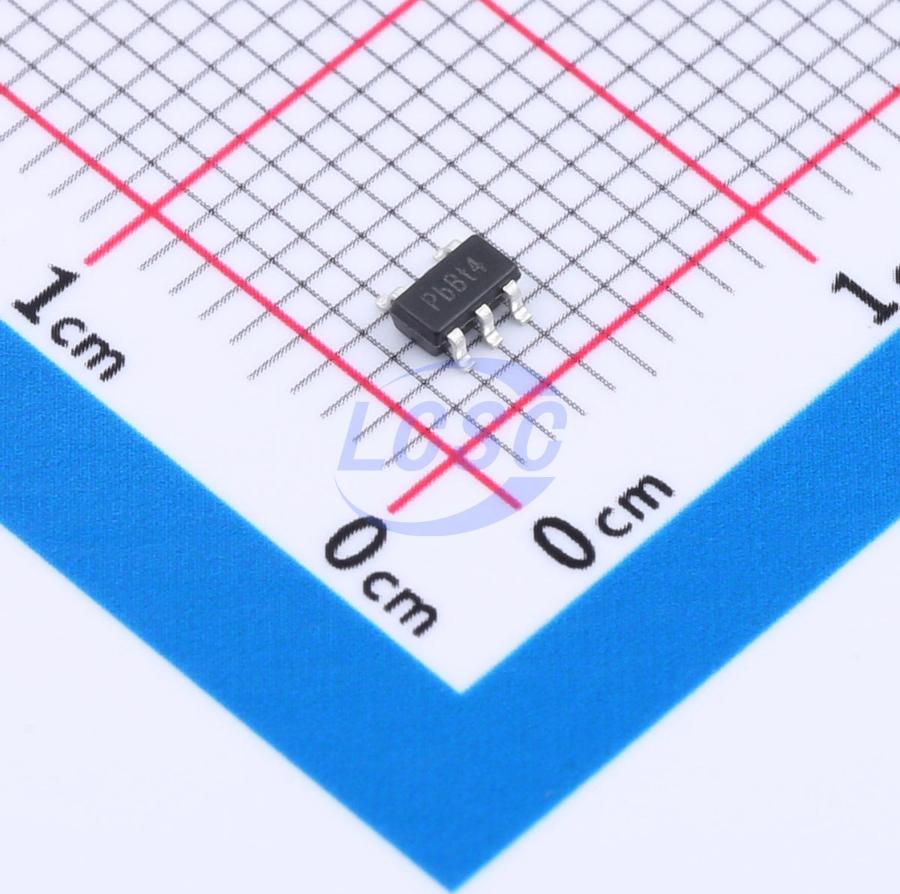

JingYang

TP6063F-TDX

1 1A Active High Low Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS

SOT-23-5ROHS CompliantActive

Low Loss Power Distribution Switch

Manufacturer: JingYang
Manufacturer part #: TP6063F-TDX
Store part #: C5156726
Package / case: SOT-23-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,480 in stock

#C5156726

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.79	₹108.95
50+	₹19.28	₹964.00
150+	₹18.20	₹2,730.00
500+	₹16.86	₹8,430.00
3,000+	₹16.26	₹48,780.00
6,000+	₹15.90	₹95,400.00

Quantity (min 5, multiples of 5)

5 × ₹21.79

₹108.95

excl. GST

₹128.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP6063F-TDX

₹108.95 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking
number of channels: 1
Maximum Continuous Current: 1A
Control Input Logic: Active High
RDS(on): 110mΩ
Operating Voltage: 2.5V~5.5V
Type: Low Side Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The TP6063F-TD is an ultra-low RDS(ON) switch with current limitation function to protect the power source from over current and short circuit conditions.
