TECH PUBLICDatasheet (PDF)

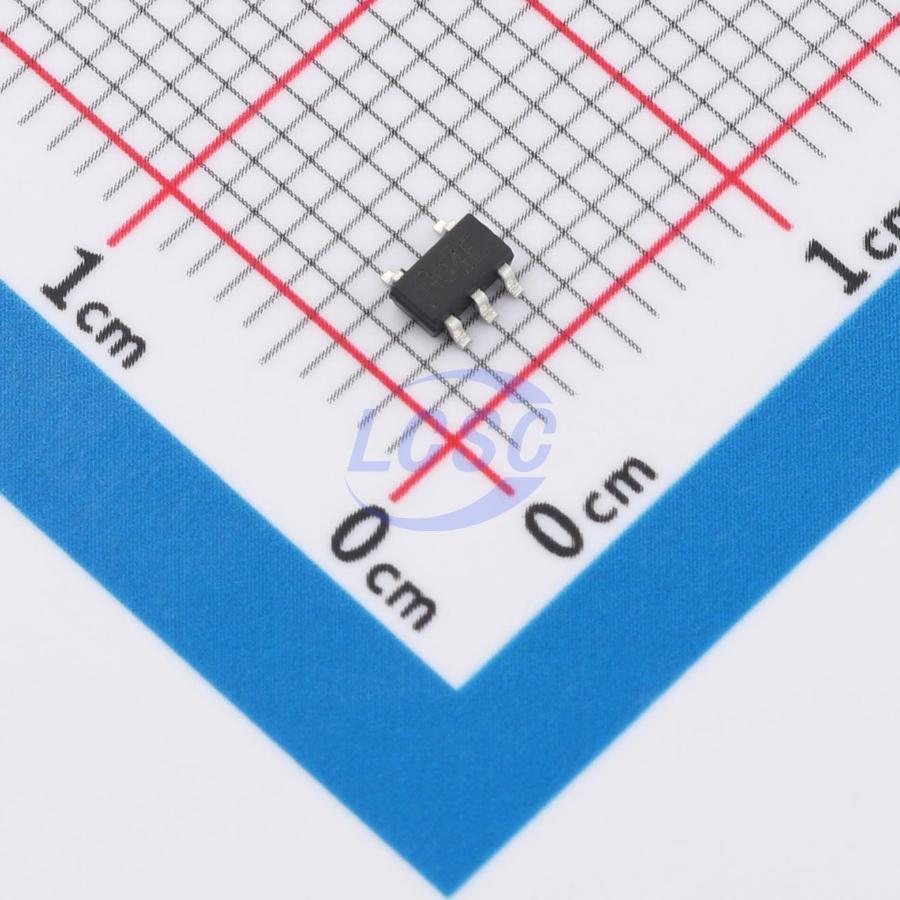

TP74AUP1G04S5
800mV~3.6V 5.4ns@3.3V,30pF 500nA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G04S5
- Store part #
- C49333192
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C49333192
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.10 | ₹71.00 |
| 100+ | ₹5.62 | ₹562.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.31 | ₹12,930.00 |
| 6,000+ | ₹3.88 | ₹23,280.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.10
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G04S5
₹71.00 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 5.4ns@3.3V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
The TP74AUP1G04 is a single inverter gate with the function Y = Ā. This device features an integrated power-off protection circuit to prevent damage during power loss.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theater systems
- Embedded PCs
- Client and enterprise SSDs
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22: 2000V HBM (A114-A), 200V MM (A115-A), 1000V CDM (C101)
