TECH PUBLIC

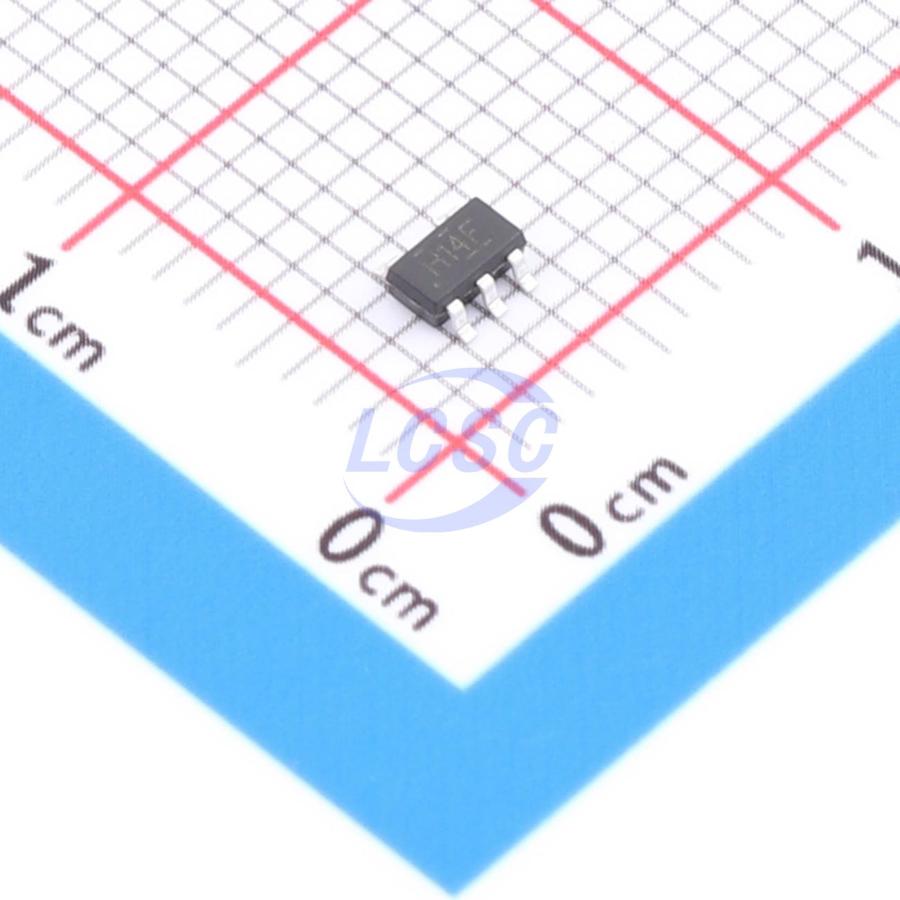

TP74AUP1G14S5

Schmitt trigger 800mV~3.6V 3ns@3.3V,5pF 500nA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74AUP1G14S5
Store part #: C49333199
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,370 in stock

#C49333199

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
10+	₹7.10	₹71.00
100+	₹5.62	₹562.00
300+	₹4.88	₹1,464.00
3,000+	₹4.31	₹12,930.00
6,000+	₹3.88	₹23,280.00
9,000+	₹3.65	₹32,850.00

Quantity (min 10, multiples of 10)

10 × ₹7.10

₹71.00

excl. GST

₹83.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74AUP1G14S5

₹71.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AUP
Input Type: Schmitt trigger
Voltage - Supply: 800mV~3.6V
Propagation Delay: 3ns@3.3V,5pF
Output Logic Level - Low: 100mV;310mV;440mV
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

TP74AUP1G14 is a single gate with Schmitt-trigger input, allowing slow input transitions and providing improved switching noise immunity at the input. The device ensures very low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.

Applications

Audio docking stations
Blu-ray players and home theater systems
Personal digital assistants
Telecom/server AC/DC power supplies: single controller: analog and digital
SSDs: client and enterprise
Wireless headsets, keyboards, and mice

Key features

Wide supply voltage range: 0.8V to 3.6V
Input tolerant up to 3.6V
IOFF supports partial power-down mode
Low quiescent current; ICC = 0.5μA (maximum)
ESD protection exceeds JESD 22: 2000V HBM (A114-A), 200V MM (A115-A), 1000V CDM (C101)
