TECH PUBLICDatasheet (PDF)

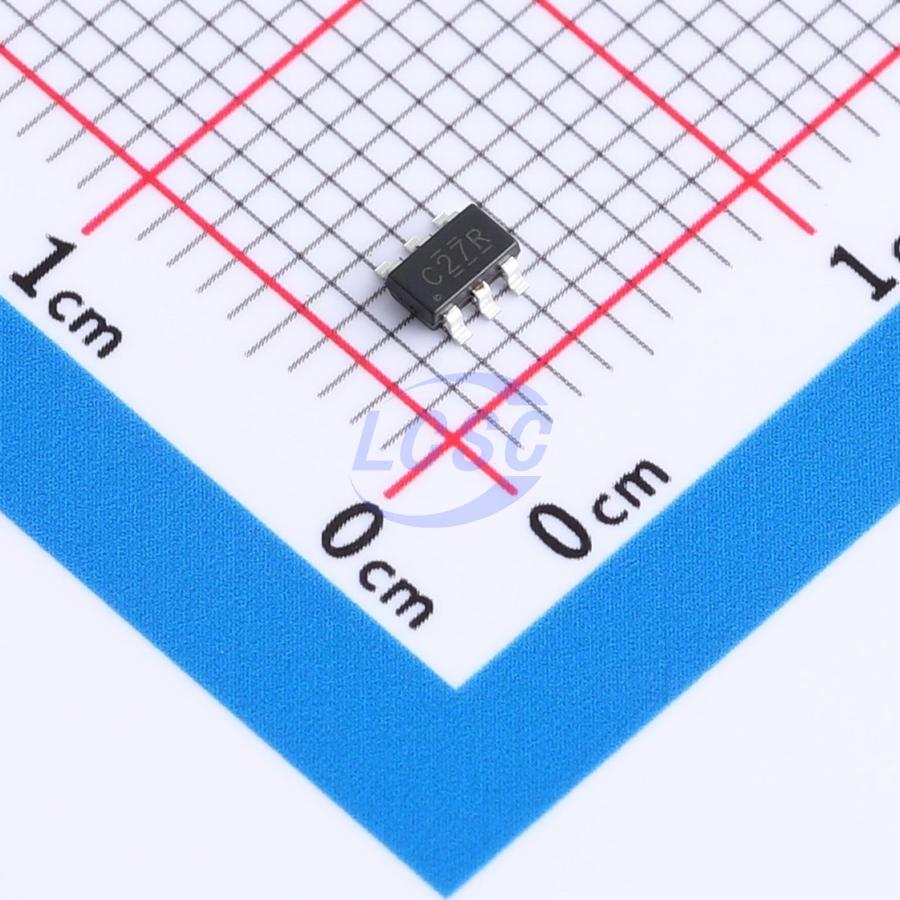

TP74LVC1G27S6
10uA 1.65V~5.5V 5.5ns@5V,50pF SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G27S6
- Store part #
- C52817181
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C52817181
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.79 | ₹579.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G27S6
₹73.70 for 10 + GST
Specifications
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;3
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 5.5ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74LVC1G27 device performs the Boolean function Y = A+B+C (overline) or Y = Ā·B̄·C̄ in positive logic. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow when the device is powered down.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Personal digital assistants
- Telecom/server AC/DC power supplies
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- Supports down-level translation to Vcc
- Low power consumption, max ICC of 10μA
- ±24mA output drive capability at 3.3V
- ESD protection exceeding JESD 22 standard: 2000V HBM, 200V MM, and 1000V CDM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G27DBVR#C52817171TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 800 | ₹6.24 · 800 in stock | View |
