TECH PUBLIC

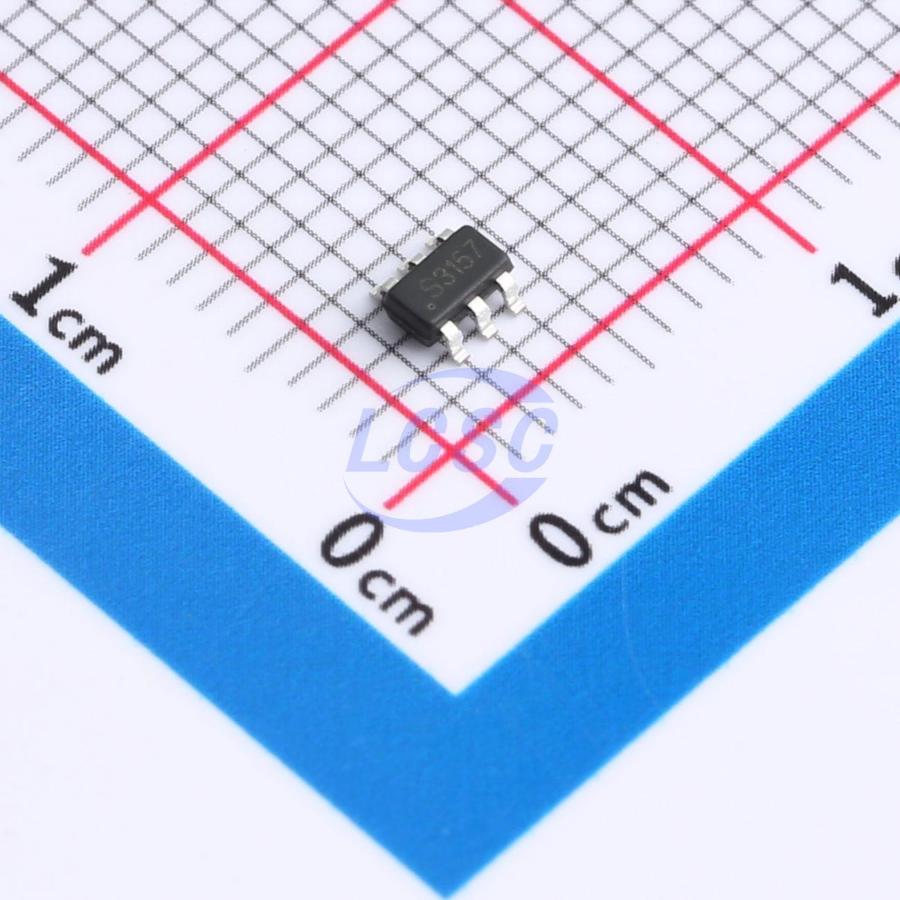

TP74LVC1G3157S6

1 6Ω 1.65V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers

SOT-23-6RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74LVC1G3157S6
Store part #: C42460122
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,800 in stock

#C42460122

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.55	₹75.50
100+	₹5.97	₹597.00
300+	₹5.19	₹1,557.00
1,000+	₹4.59	₹4,590.00
5,000+	₹4.11	₹20,550.00
10,000+	₹3.88	₹38,800.00

Quantity (min 10, multiples of 10)

10 × ₹7.55

₹75.50

excl. GST

₹89.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74LVC1G3157S6

₹75.50 for 10 + GST

Specifications

Features: Power-off isolation;Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 6Ω
Voltage - Supply: 1.65V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 6Ω when A = 5V
1.8V Logic Compatible Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @340MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2uA)
With Very Wide Supply Range (1.65V ~ 5.5V)
