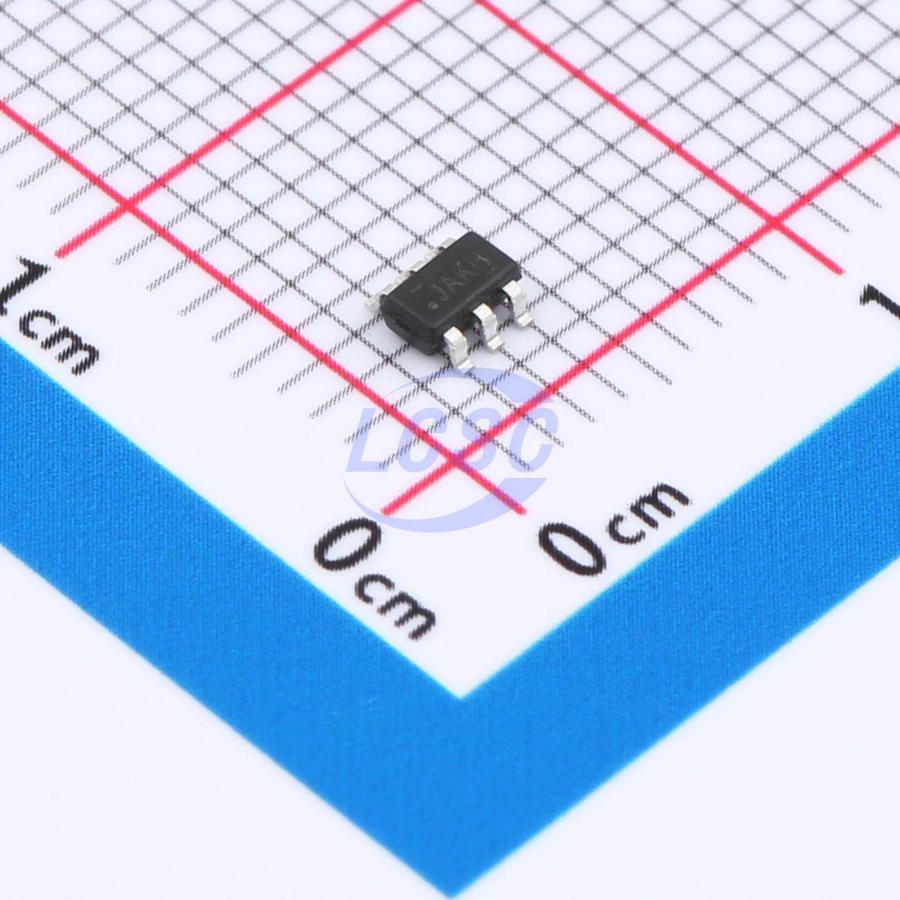

TS5A3160DBVR-TP

IC SWITCH 1.8Ω@5.5V SOT-23-6

SOT-23-6RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A3160DBVR-TP
Store part #: C42411033
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,220 in stock

#C42411033

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.64	₹96.40
100+	₹7.67	₹767.00
300+	₹6.68	₹2,004.00
3,000+	₹5.62	₹16,860.00
6,000+	₹5.04	₹30,240.00
9,000+	₹4.74	₹42,660.00

Quantity (min 10, multiples of 10)

10 × ₹9.64

₹96.40

excl. GST

₹113.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3160DBVR-TP

₹96.40 for 10 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 1.8Ω@5.5V
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

Is a low-voltage single-pole double-throw (SPDT) analog switch for signal multiplexing in chopper, modem, signal gating, and analog-to-digital and digital-to-analog conversion systems.

Applications

Mobile phones and TWS earphones
Audio, video, UART, USB2.0 signal and power routing

Key features

Low on-resistance, Ron = 1.5Ω
1.8V logic-compatible control pin
A rail covers VCC, enabling true isolation even when power is off
High off-state isolation: -100dB @ 100KHz
Low crosstalk: -97dB @ 100KHz
High bandwidth (-3dB @ 700MHz) for USB2.0 high-speed routing
Low quiescent current (<2uA), wide supply range (1.5V ~ 5.5V)
