TECH PUBLICDatasheet (PDF)

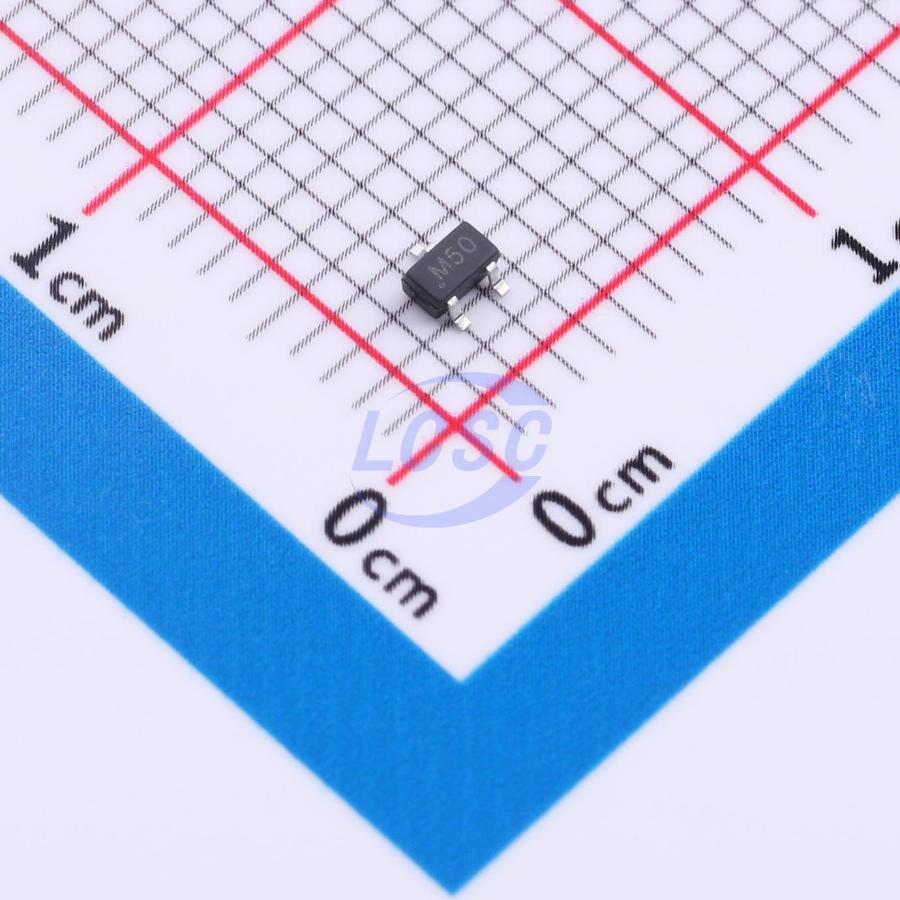

TPADM803SAKSZ
240ms Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPADM803SAKSZ
- Store part #
- C52146012
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C52146012
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.58 | ₹122.90 |
| 50+ | ₹19.22 | ₹961.00 |
| 150+ | ₹16.92 | ₹2,538.00 |
| 500+ | ₹14.06 | ₹7,030.00 |
| 3,000+ | ₹12.78 | ₹38,340.00 |
| 6,000+ | ₹12.03 | ₹72,180.00 |
5 × ₹24.58
₹122.90
excl. GST
₹145.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPADM803SAKSZ
₹122.90 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
Key features
- High accuracy, ±2% tolerance
- Precision monitoring of VCC for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid down to VCC = +1V
- Specified over full temperature range
- 2μA supply current
- One output configuration available: open-drain, active-low reset output
- Available in SOT-323 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX803SC3#C52146007TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,875 | ₹22.60 · 2,875 in stock | View |
 | TPMIC803-29D3VC3#C52146010TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,920 | ₹18.57 · 2,920 in stock | View |
 | TPTLV803EA29DCKR#C52146011TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,690 | ₹18.57 · 2,690 in stock | View |
 | MAX803SQ293T1G-TP#C52146013TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 1,655 | ₹18.71 · 1,655 in stock | View |
 | TPMCP121T-300E/LB#C52146044TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,935 | ₹27.49 · 2,935 in stock | View |
