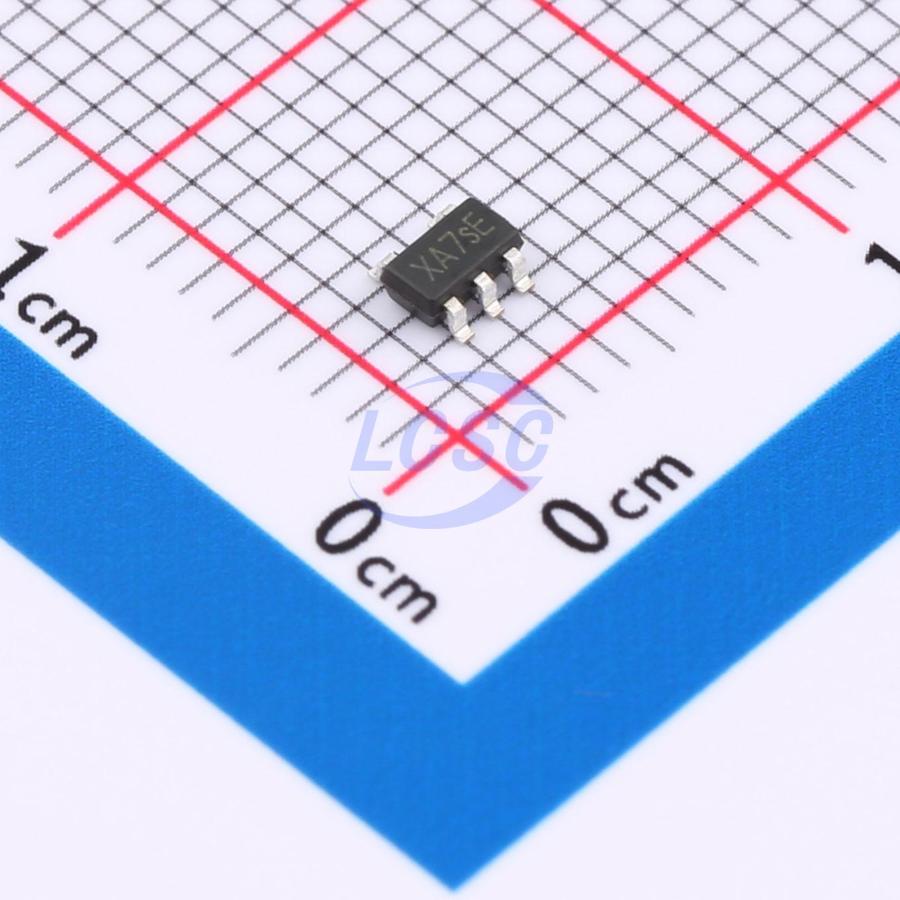

TPAP22802AW5
1 2A High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
SINGLE CHANNEL POWER DISTRIBUTION LOAD SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAP22802AW5
- Store part #
- C23380904
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,965 in stock
#C23380904
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.40 | ₹112.00 |
| 50+ | ₹17.58 | ₹879.00 |
| 150+ | ₹15.52 | ₹2,328.00 |
| 500+ | ₹12.95 | ₹6,475.00 |
| 3,000+ | ₹11.81 | ₹35,430.00 |
| 6,000+ | ₹11.13 | ₹66,780.00 |
5 × ₹22.40
₹112.00
excl. GST
₹132.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAP22802AW5
₹112.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High;Active Low
- RDS(on)
- 50mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Additional features include soft-start to limit the inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. The maximum current is limited to typically 3.0A in dual ports in accordance with the USB power requirement. The low quiescent current as 35uA makes this device ideal for portable battery operated equipment.
Applications
- USB Ports
- Notebook and Desktop Computers
- High-Side Power Protection Switchs
- Consumer Electronics
- Telecom Systems
- Digital TV
- USB Device Power Switch
- Motherboard USB Power Switch
Key features
- Wide Supply Voltage Range: 2.5V to 5.5V
- Compliant to USB Specifications
- Current-Limit and Short-Circuit Protections
- Enable Active Low/High
- Typical Rdson 50mQ(TYP) (SOT-23-5L)
- Thermal Shutdown Protection
- Current Limiting Protection
- Hot Plug-In Application(Soft start)
- Guaranteed 2A continuous load current
- Open Drain Fault Flag Output
- Reverse Current Flow Blocking (no body diode)
- RoHS and Halogen free compliance
