TECH PUBLICDatasheet (PDF)

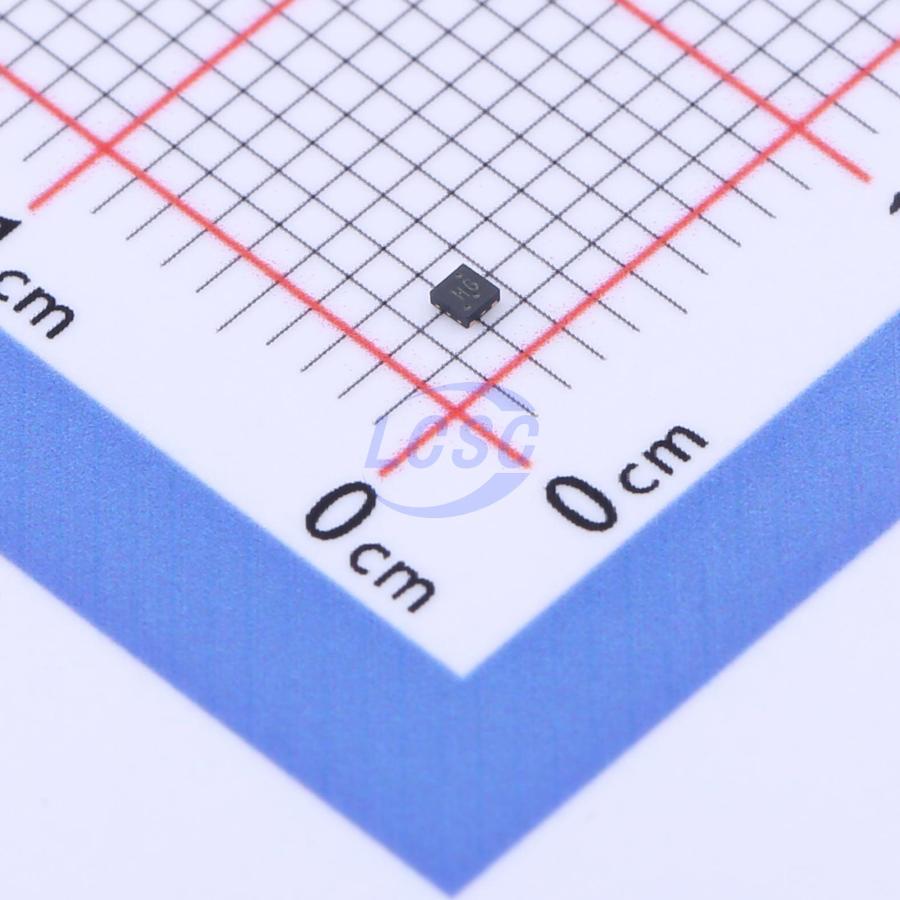

TPAP7343D-33FS4
3.3V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4ROHS CompliantActive
300mA Low-Dropout Linear Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAP7343D-33FS4
- Store part #
- C2987061
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,460 in stock
#C2987061
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.11 | ₹55.55 |
| 50+ | ₹8.90 | ₹445.00 |
| 150+ | ₹7.66 | ₹1,149.00 |
| 500+ | ₹6.93 | ₹3,465.00 |
| 2,500+ | ₹6.28 | ₹15,700.00 |
| 5,000+ | ₹5.94 | ₹29,700.00 |
5 × ₹11.11
₹55.55
excl. GST
₹65.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPAP7343D-33FS4
₹55.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
The TPAP7343 is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.4V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 15 μA low quiescent current and 0.5 μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- CDM/GSM mobile phone
- PDAs
- MP3 Audio/Video equipment
Key features
- Input Voltage Range: 1.4V to 5.5V
- 15 μA Ground Current at no Load
- PSRR μ = 70dB at 1kHz
- 1.5% Output Accuracy
- Low (0.1 μA) Shutdown Current
- Dropout Voltage: 0.15V at 300mA when Vour ≥ 3V
- Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- DFN - 4L 1x1 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP73333PDQNR#C2923371TECH PUBLIC · XDFN-4-EP(1x1) | TECH PUBLIC | XDFN-4-EP(1x1) | 2,220 | ₹17.11 · 2,220 in stock | View |
 | TP74333PDQNR#C2923398TECH PUBLIC · XDFN-4-EP(1x1) | TECH PUBLIC | XDFN-4-EP(1x1) | 9,235 | ₹13.88 · 9,235 in stock | View |
 | TPNCP114AMX330TCG#C2928717TECH PUBLIC · UDFN-4-EP(1x1) | TECH PUBLIC | UDFN-4-EP(1x1) | 3,340 | ₹13.94 · 3,340 in stock | View |
 | TPMIC5504-3.3YMT#C3021135TECH PUBLIC · DFN-4-EP(1x1) | TECH PUBLIC | DFN-4-EP(1x1) | 17,045 | ₹14.75 · 17,045 in stock | View |
 | TP132LC33D4#C48639049TECH PUBLIC · DFN-4(1x1) | TECH PUBLIC | DFN-4(1x1) | 14,340 | ₹4.96 · 14,340 in stock | View |
