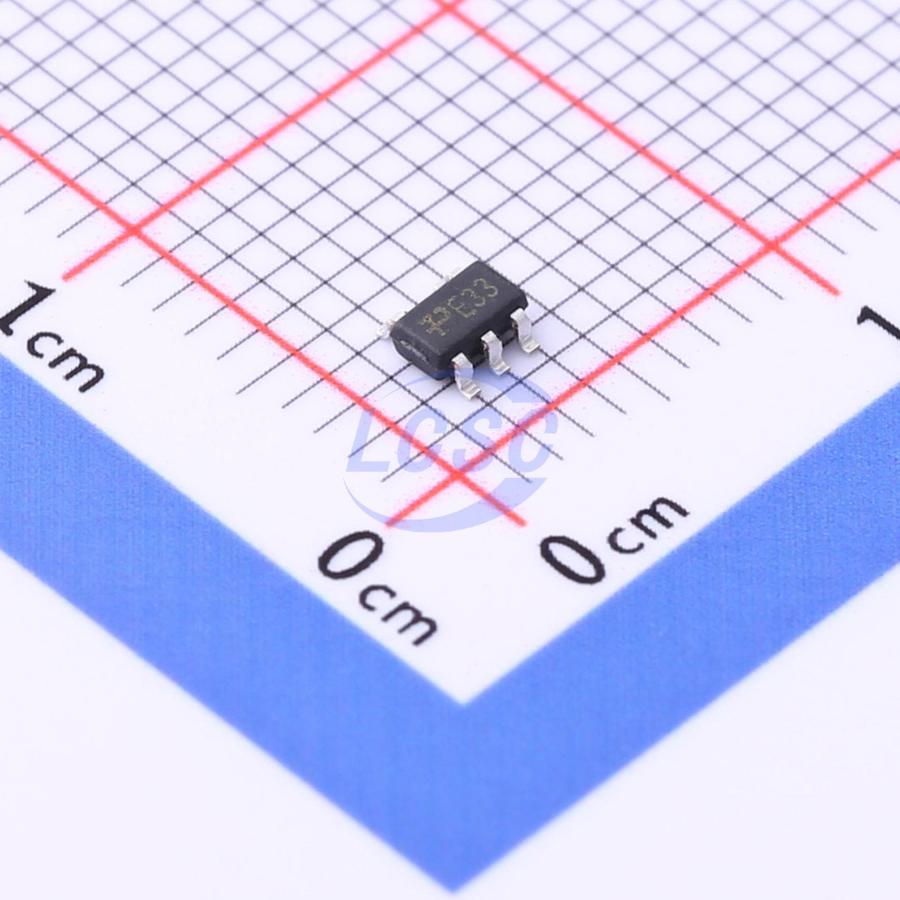

TPAP7365-33WG
Linear Voltage Regulator IC Positive Fixed 1 Output 600mA SOT-23-5
SOT-23-5RoHSActive
600 mA, 2 μA, high PSRR voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAP7365-33WG
- Store part #
- C2937010
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C2937010
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.05 | ₹75.25 |
| 50+ | ₹12.02 | ₹601.00 |
| 150+ | ₹10.51 | ₹1,576.50 |
| 500+ | ₹9.37 | ₹4,685.00 |
| 3,000+ | ₹7.59 | ₹22,770.00 |
| 6,000+ | ₹7.14 | ₹42,840.00 |
5 × ₹15.05
₹75.25
excl. GST
₹88.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAP7365-33WG
₹75.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This production is group of low -dropout ( LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5V, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 600mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.32V at 600mA/Vout 3.3V
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over Temperature Protection
- SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAP2125K-3.3TRE1#C2937006TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,480 | ₹15.49 · 2,480 in stock | View |
 | TPRT9080-33GJ5#C2959864TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,695 | ₹11.62 · 2,695 in stock | View |
 | RT9080-33GJ5#C20617299TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,775 | ₹11.70 · 5,775 in stock | View |
 | TP162C33S5#C2937051TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,940 | ₹17.15 · 3,940 in stock | View |
 | TPAP2112K-3.3TRG1#C3021085TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,475 | ₹10.51 · 8,475 in stock | View |
