TECH PUBLICDatasheet (PDF)

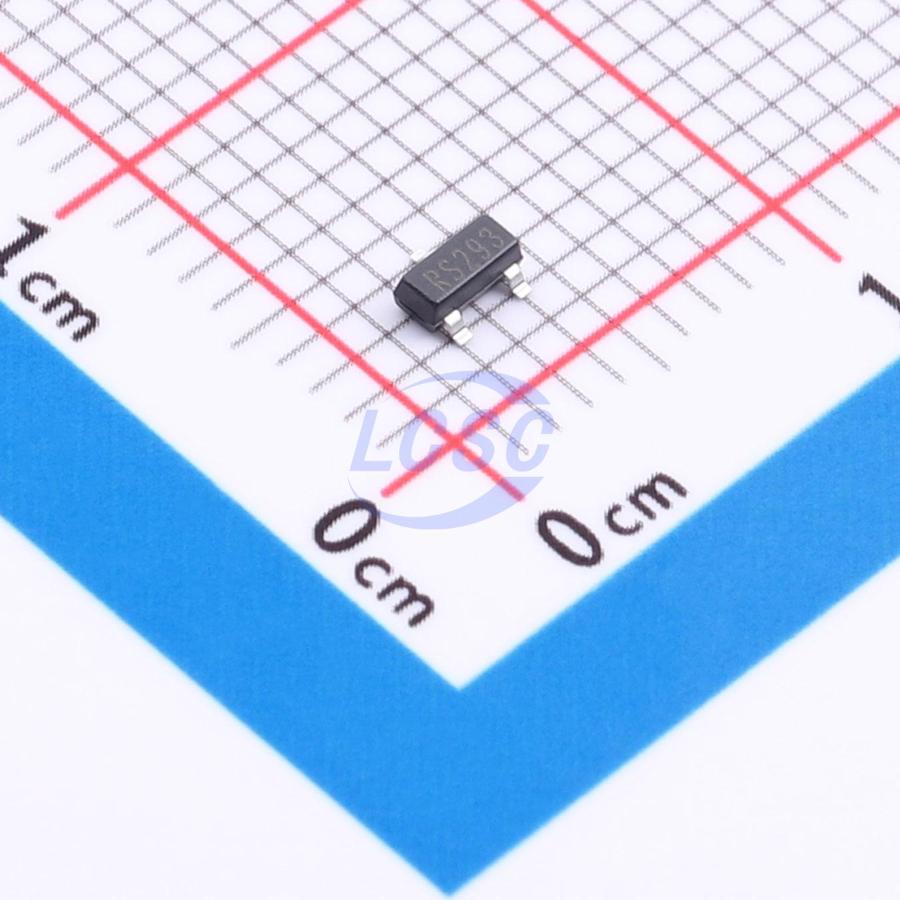

TPAPX809-46SRG
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAPX809-46SRG
- Store part #
- C53100569
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53100569
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.02 | ₹65.10 |
| 50+ | ₹10.25 | ₹512.50 |
| 150+ | ₹8.88 | ₹1,332.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 3,000+ | ₹7.03 | ₹21,090.00 |
| 6,000+ | ₹6.60 | ₹39,600.00 |
5 × ₹13.02
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAPX809-46SRG
₹65.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Intelligent instruments
- CPU and logic circuit reset
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Logic output guaranteed correct with Vcc as low as 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPCAT809LTBI-GT3#C52098287TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,990 | ₹10.69 · 2,990 in stock | View |
 | TPMCP102T-475E/TT#C53100598TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹26.76 · 3,000 in stock | View |
 | TPMCP112T-475E/TT#C53100568TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹13.08 · 3,000 in stock | View |
 | TPMCP100T-475E/TT#C53100592TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,985 | ₹26.76 · 2,985 in stock | View |
 | MAX809M#C7202965TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,020 | ₹9.96 · 3,020 in stock | View |
