TECH PUBLICDatasheet (PDF)

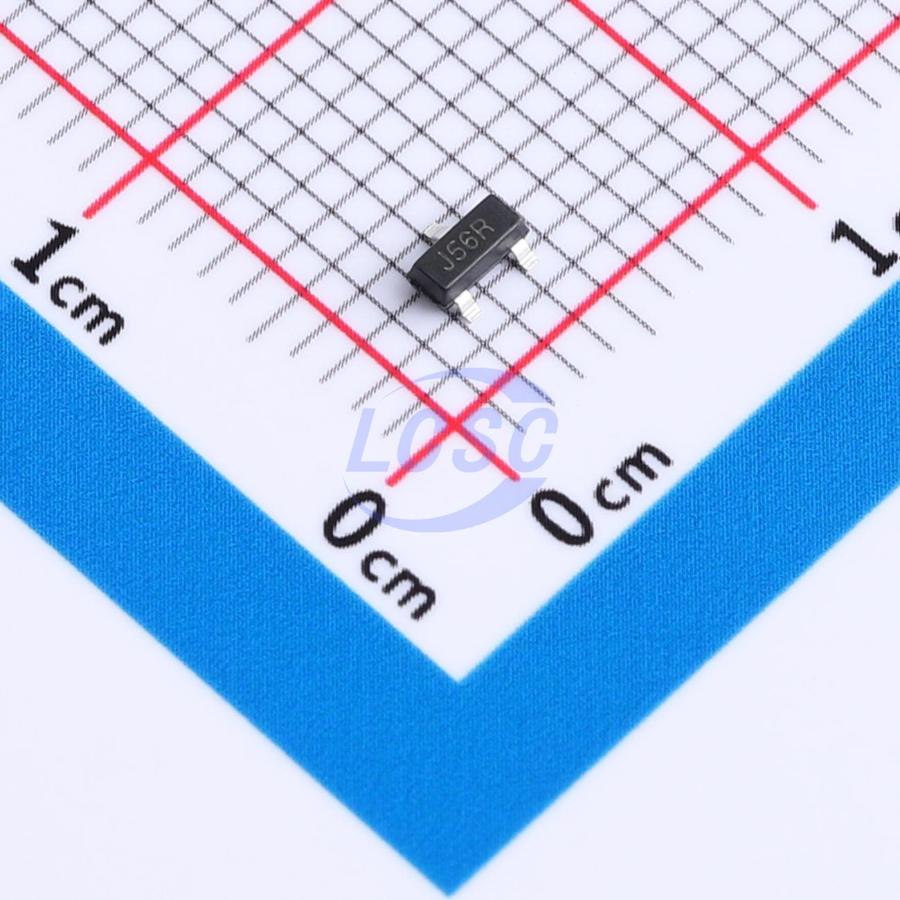

TPAPX809S-26SA
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAPX809S-26SA
- Store part #
- C52817199
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52817199
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.81 | ₹78.10 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.33 | ₹1,599.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.22 | ₹25,320.00 |
| 9,000+ | ₹3.97 | ₹35,730.00 |
10 × ₹7.81
₹78.10
excl. GST
₹92.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAPX809S-26SA
₹78.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output down to Vcc = 1.0V
- Push-pull active-low reset output
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMCP112T-270E/TT#C50314375TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,165 | ₹13.42 · 1,165 in stock | View |
 | TPCAT809RTBI-GT3#C52098284TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,970 | ₹7.49 · 1,970 in stock | View |
 | IMP809REUR-TP#C52817111TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,240 | ₹8.12 · 3,240 in stock | View |
 | MAX809RTRG-TP#C52817134TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 905 | ₹10.41 · 905 in stock | View |
 | TPMCP809T-270I/TT#C52817245TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,845 | ₹10.39 · 1,845 in stock | View |
