TECH PUBLICDatasheet (PDF)

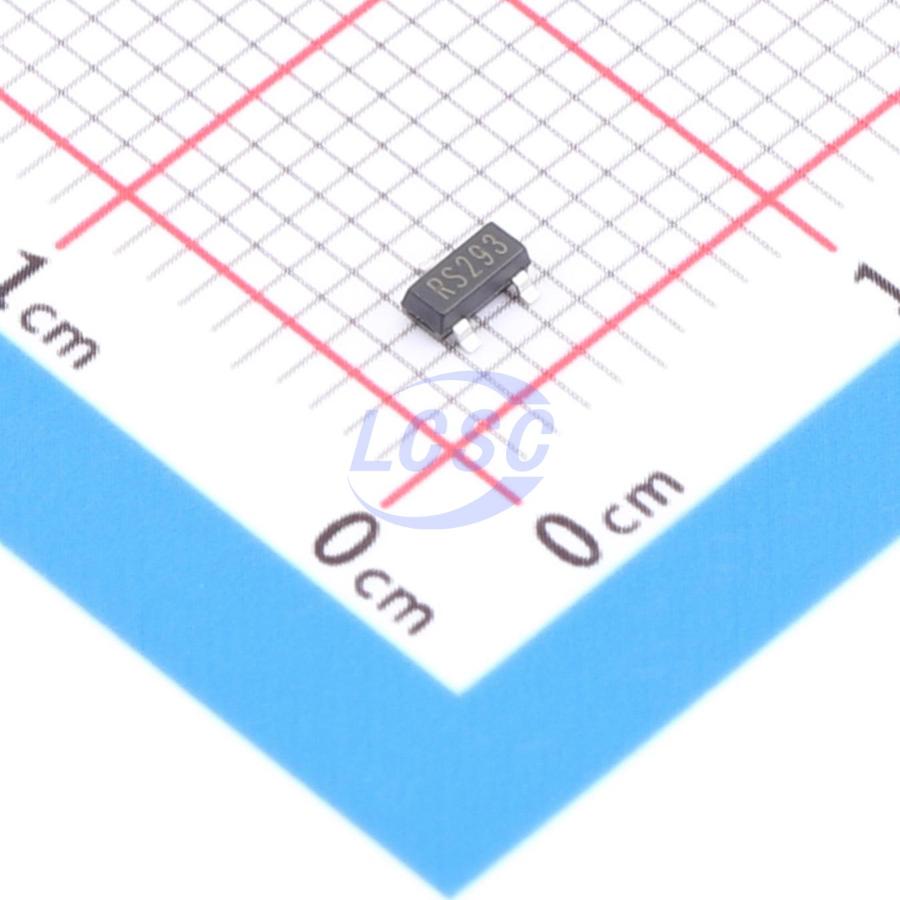

TPAPX809S-29SR
240ms Active Low 1V~5.5V 1 SOT-23-3 Supervisors RoHS
SOT-23-3ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAPX809S-29SR
- Store part #
- C49375121
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,860 in stock
#C49375121
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.02 | ₹45.10 |
| 50+ | ₹7.92 | ₹396.00 |
| 150+ | ₹7.37 | ₹1,105.50 |
| 500+ | ₹6.96 | ₹3,480.00 |
| 3,000+ | ₹6.63 | ₹19,890.00 |
| 6,000+ | ₹6.47 | ₹38,820.00 |
5 × ₹9.02
₹45.10
excl. GST
₹53.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAPX809S-29SR
₹45.10 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+85℃
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Simple Reset/Power-On Reset
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Logic output guaranteed correct with Vcc as low as 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
