TECH PUBLICDatasheet (PDF)

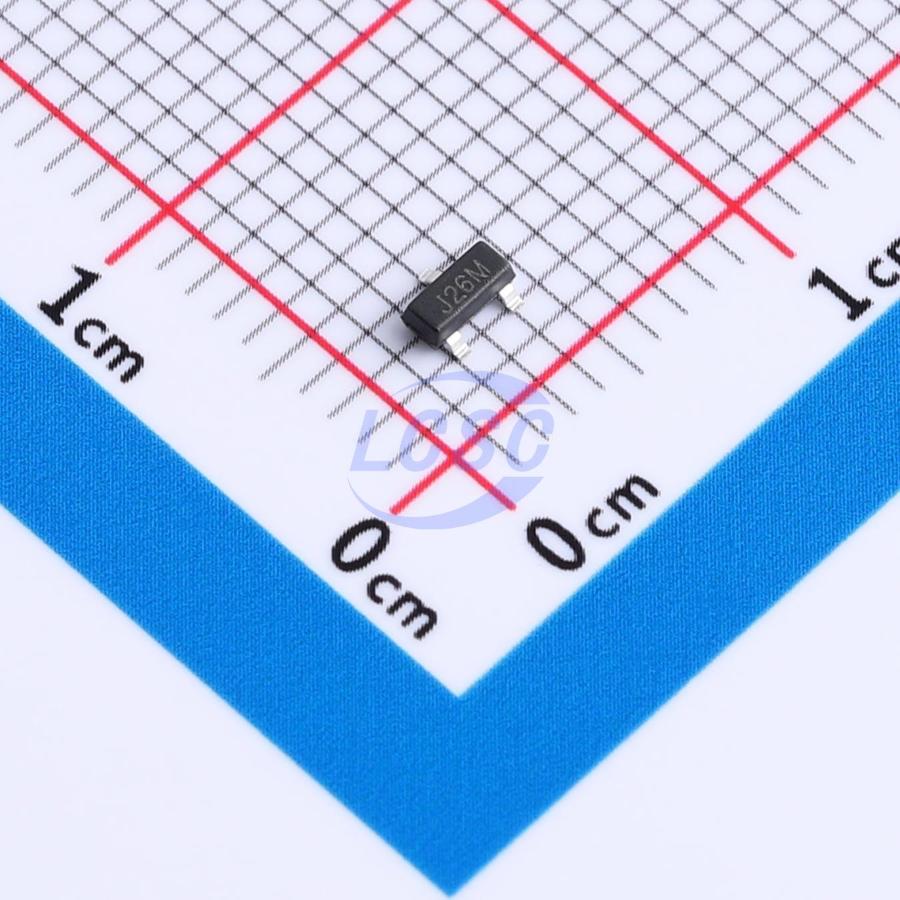

TPAPX809S-44SA
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAPX809S-44SA
- Store part #
- C52817203
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,670 in stock
#C52817203
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.18 | ₹618.00 |
| 300+ | ₹5.34 | ₹1,602.00 |
| 3,000+ | ₹4.72 | ₹14,160.00 |
| 6,000+ | ₹4.23 | ₹25,380.00 |
| 9,000+ | ₹3.98 | ₹35,820.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAPX809S-44SA
₹78.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output down to Vcc = 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMP809MEUR-TP#C52817110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,170 | ₹8.11 · 4,170 in stock | View |
 | TPADM809MARTZ#C52817185TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹21.42 · 3,000 in stock | View |
 | TPTCM809MENB713#C52817310TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹7.86 · 3,000 in stock | View |
 | TPTLV809EA43DBZR#C52817322TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,745 | ₹10.41 · 2,745 in stock | View |
 | TPMCP100T-450E/TT#C53100596TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹26.76 · 3,000 in stock | View |
