TECH PUBLICDatasheet (PDF)

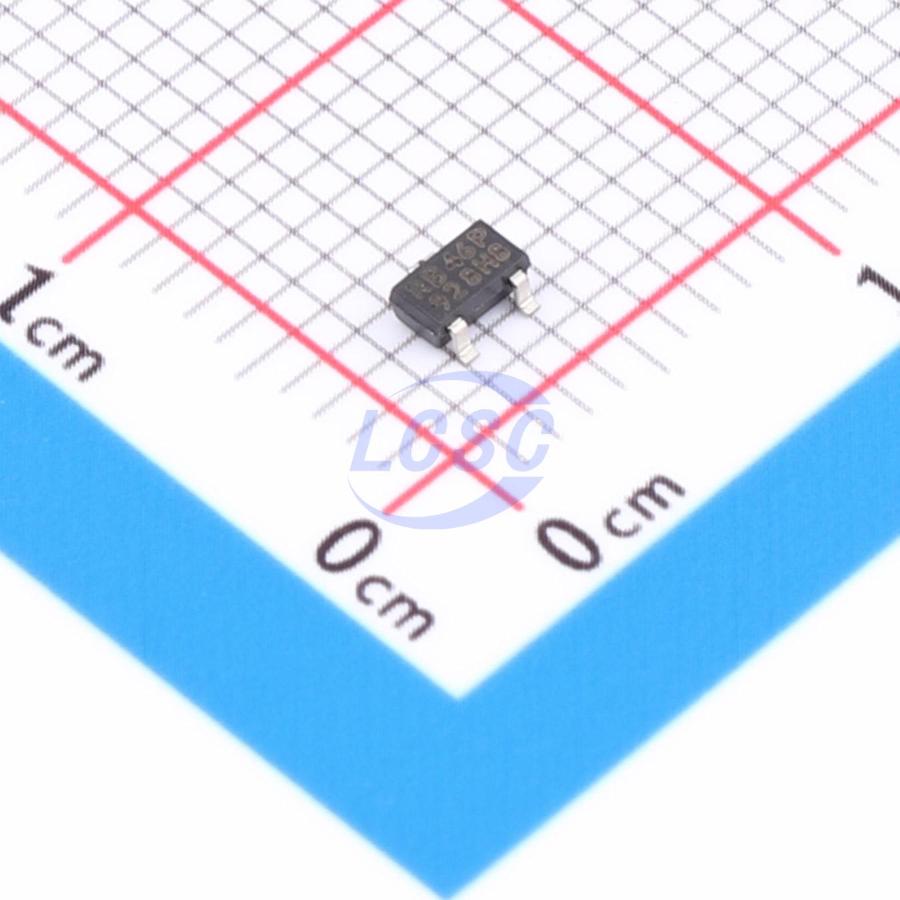

TPAX803LS3L-A
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX803LS3L-A
- Store part #
- C48995592
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C48995592
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.44 | ₹77.20 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.68 | ₹1,602.00 |
| 500+ | ₹9.49 | ₹4,745.00 |
| 3,000+ | ₹8.53 | ₹25,590.00 |
| 6,000+ | ₹8.06 | ₹48,360.00 |
5 × ₹15.44
₹77.20
excl. GST
₹91.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX803LS3L-A
₹77.20 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Battery-powered systems and controllers
- Intelligent instrumentation
- Critical microprocessor and microcontroller power supply monitoring
- Portable/battery-powered devices
- Automotive electronics
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Guaranteed valid RESET assertion with VCC as low as +1V
- Fully specified over temperature range
- 2μA supply current
- One output configuration available: open-drain, active-low RESET output
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX803SS3#C23380908TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,680 | ₹16.80 · 1,680 in stock | View |
