TECH PUBLICDatasheet (PDF)

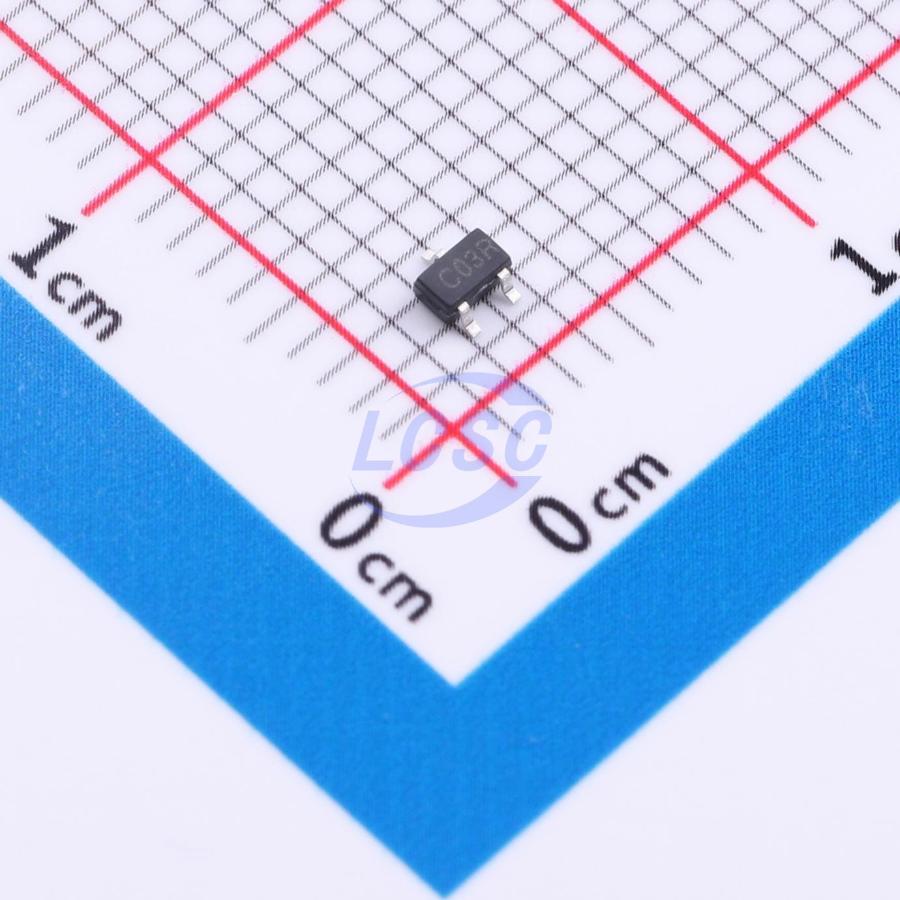

TPAX803RC3
240ms Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX803RC3
- Store part #
- C52146014
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52146014
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.74 | ₹113.70 |
| 50+ | ₹17.79 | ₹889.50 |
| 150+ | ₹15.66 | ₹2,349.00 |
| 500+ | ₹13.02 | ₹6,510.00 |
| 3,000+ | ₹11.83 | ₹35,490.00 |
| 6,000+ | ₹11.13 | ₹66,780.00 |
5 × ₹22.74
₹113.70
excl. GST
₹134.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX803RC3
₹113.70 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instrumentation
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precision voltage monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid down to supply voltage as low as +1V
- Fully specified over the entire temperature range
- 2μA supply current
- One output configuration available: open-drain, active-low reset output
- Available in SOT-23 and SOT-323 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX803REXR-TP#C52146015TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 260 | ₹24.74 · 260 in stock | View |
 | TPAPX803L20-26C3#C52146016TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,980 | ₹18.57 · 2,980 in stock | View |
 | TPTLV803EA26DCKR#C52146018TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,950 | ₹18.71 · 2,950 in stock | View |
 | TPADM803RAKSZ#C52146019TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,955 | ₹24.58 · 2,955 in stock | View |
 | MAX803SQ263T1G-TP#C52146020TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,315 | ₹18.71 · 2,315 in stock | View |
