TECH PUBLICDatasheet (PDF)

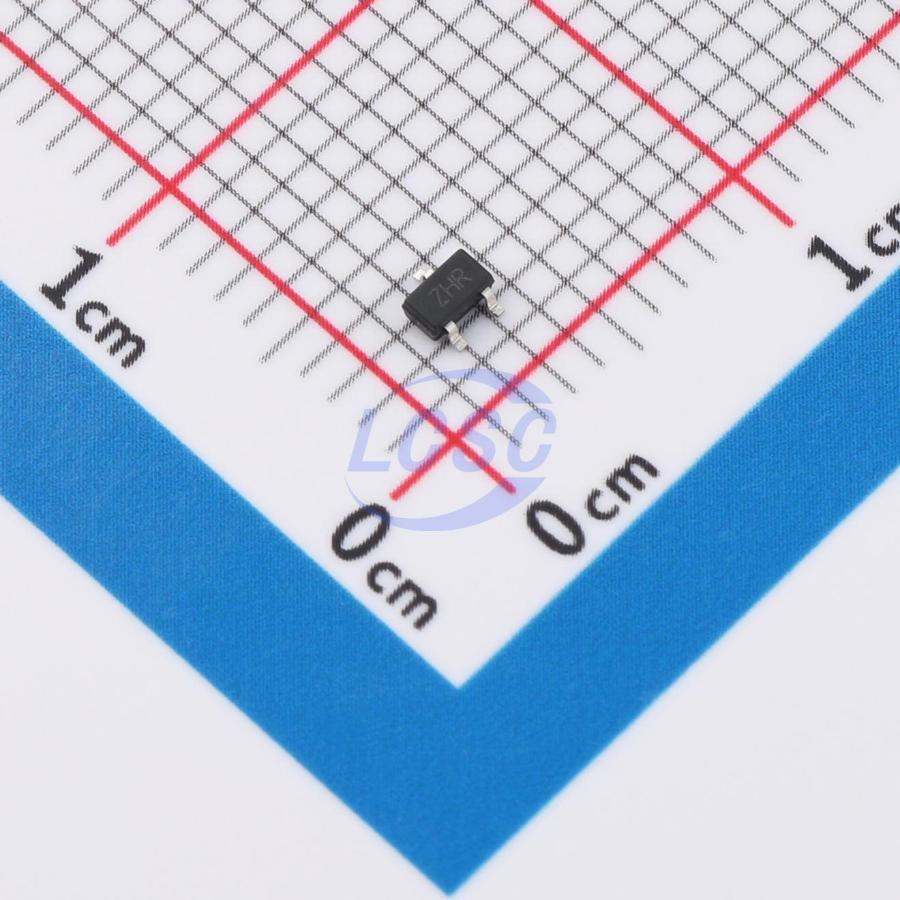

TPAX809TC3
240ms Active Low 1V~5.5V 1 SOT-323 Supervisors RoHS
SOT-323ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX809TC3
- Store part #
- C49333209
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C49333209
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.35 | ₹81.75 |
| 50+ | ₹14.28 | ₹714.00 |
| 150+ | ₹13.39 | ₹2,008.50 |
| 500+ | ₹12.28 | ₹6,140.00 |
| 3,000+ | ₹11.79 | ₹35,370.00 |
| 6,000+ | ₹11.50 | ₹69,000.00 |
5 × ₹16.35
₹81.75
excl. GST
₹96.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX809TC3
₹81.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.085 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3 μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output at VCC = 1.0 V
- Push-pull active-low reset output
- Available in SOT23 and SOT323 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV809EA30DCKR#C52098279TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 165 | ₹18.71 · 165 in stock | View |
 | TPMIC809TYC3#C52098278TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 200 | ₹18.71 · 200 in stock | View |
 | TPMCP103T-315E/LB#C52098281TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 40 | ₹18.71 · 40 in stock | View |
 | TPTCM809TVLB713#C52098277TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 165 | ₹18.71 · 165 in stock | View |
 | TPAX809SC3#C49333207TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,945 | ₹16.35 · 2,945 in stock | View |
