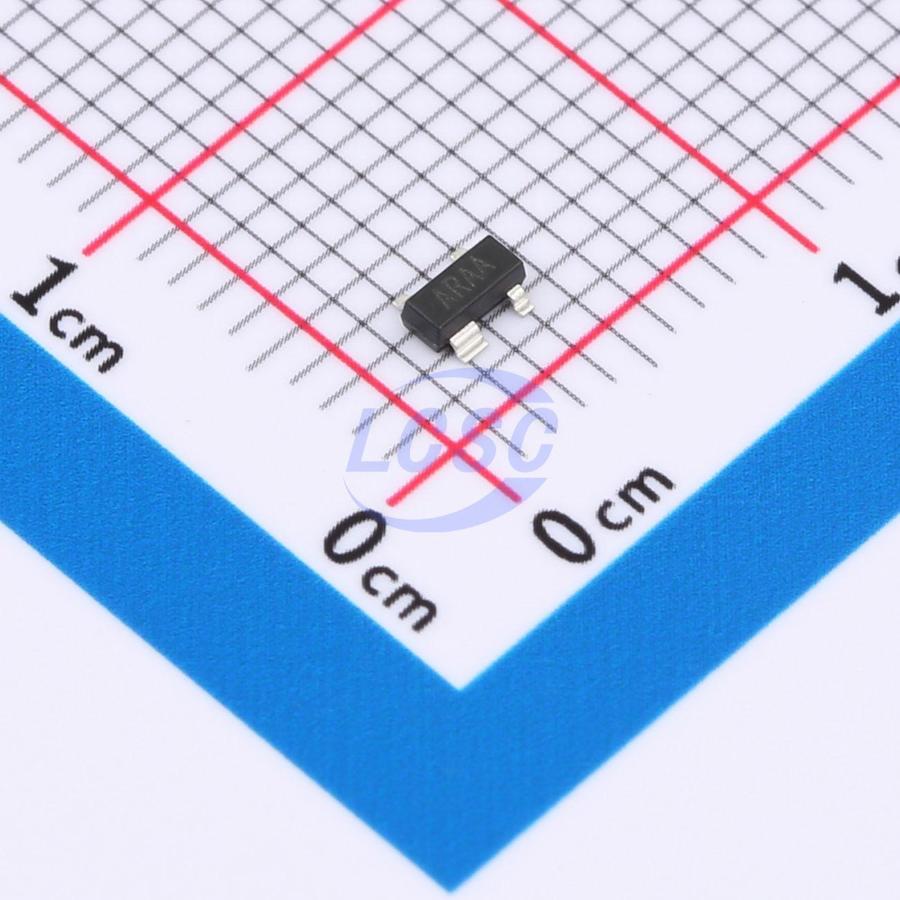

TPAX811RS4
Supervisor Push-Pull 1 Channel SOT-143
4-Pin microcontroller power supply monitoring circuit
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX811RS4
- Store part #
- C22358683
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C22358683
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.76 | ₹83.80 |
| 50+ | ₹13.17 | ₹658.50 |
| 150+ | ₹11.62 | ₹1,743.00 |
| 500+ | ₹9.69 | ₹4,845.00 |
| 3,000+ | ₹8.84 | ₹26,520.00 |
| 6,000+ | ₹8.33 | ₹49,980.00 |
5 × ₹16.76
₹83.80
excl. GST
₹98.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX811RS4
₹83.80 for 5 + GST
Specifications
- Reset Timeout
- 140ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 8uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.32V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
TPAX811/812 are cost-effective system supervisory circuits designed to monitor the supply voltage Vcc in digital systems and assert a reset signal to the host processor when necessary. A manual reset input is provided as an alternative to the reset supervisor, suitable for push-button reset applications. No external components are required. Within 120μs of Vcc falling below the reset threshold voltage, the reset output is asserted. After Vcc rises above the reset threshold, RESET remains asserted for a minimum of 140ms. The TPAX812 RESET output is active-high, while the TPAX811 RESET output is active-low. When Vcc drops below 1.1V, the TPAX811/812 can still maintain a valid output. Both devices are available in a 4-pin SOT-143 package with an operating temperature range of -40℃ to +85℃. The TPAX811/812 are optimized to suppress fast transient glitches appearing on the VoD supply rail.
Applications
- Computers
- Servers
- Laptops
- Cable modems
- Wireless communications
- Embedded control systems
- White goods
- Power meters
- Intelligent instruments
- PDAs and handheld devices
- Smart meters
Key features
- High-precision supervisory circuit for monitoring power supplies rated at 2.0V, 2.8V, 3.0V, 3.3V, and 5.0V
- Manual reset input
- 140ms minimum Reset/Reset output pulse width
- Reset/Reset output remains valid with VPD as low as 1.1V
- Low supply current, 8μA (typical)
- Vcc transient glitch immunity
- Compact 4-pin SOT-143 package
- No external components required
- Drop-in replacement for TPAX811/812 with additional lower threshold voltage options
- Push-pull Reset output
- Temperature range: -40°C to +85°C
