TECH PUBLICDatasheet (PDF)

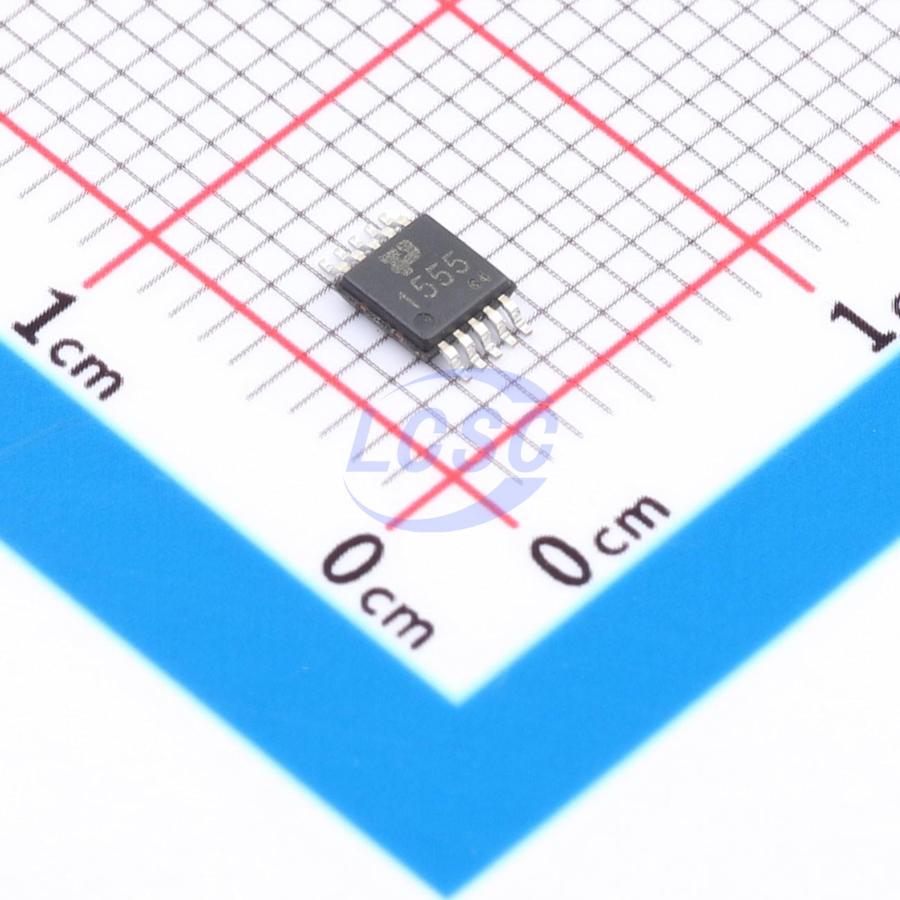

TPBL1555MMG
3.9Ω 2 1.5V~5.5V MSOP-10L Analog Switches, Multiplexers, Demultiplexers
MSOP-10LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPBL1555MMG
- Store part #
- C51886207
- Package / case
- MSOP-10L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C51886207
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.76 | ₹93.80 |
| 50+ | ₹14.76 | ₹738.00 |
| 150+ | ₹12.78 | ₹1,917.00 |
| 500+ | ₹11.27 | ₹5,635.00 |
| 2,500+ | ₹10.08 | ₹25,200.00 |
| 4,000+ | ₹9.49 | ₹37,960.00 |
5 × ₹18.76
₹93.80
excl. GST
₹110.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPBL1555MMG
₹93.80 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 3.9Ω
- Number of Channels
- 2
- Voltage - Supply
- 1.5V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This is a dual single-pole double-throw low on-resistance analog switch capable of operating from a single supply voltage of 1.5V to 5.5V. The device features low on-resistance and excellent on-resistance matching, with break-before-make functionality to prevent signal distortion during channel switching. The device achieves true isolation — even when the COMx pin voltage exceeds VCC, only a negligible amount of current flows back to the supply.
Applications
- Mobile phones
- Tablets
- Laptops
- USB Type-C microphone/ground switching
- Audio, video, UART, USB2.0 signal and power routing
- Telecom signal switching
- Sample-and-hold systems
- Signal gating
- Multiplexers/demultiplexers
Key features
- Low on-resistance, Ron = 1.5Ω
- Control pin compatible with 1.8V logic levels
- High off-state isolation: -100dB @ 100KHz
- COMx pin voltage can exceed VCC, enabling true isolation even during power failure
- Low inter-channel crosstalk: -97dB @ 100KHz
- High bandwidth (-3dB @ 500MHz), suitable for USB2.0 high-speed signal routing
- Low quiescent current (<2μA), wide operating voltage range (1.5V ~ 5.5V)
- Compact package: MSOP-10L
