TECH PUBLIC

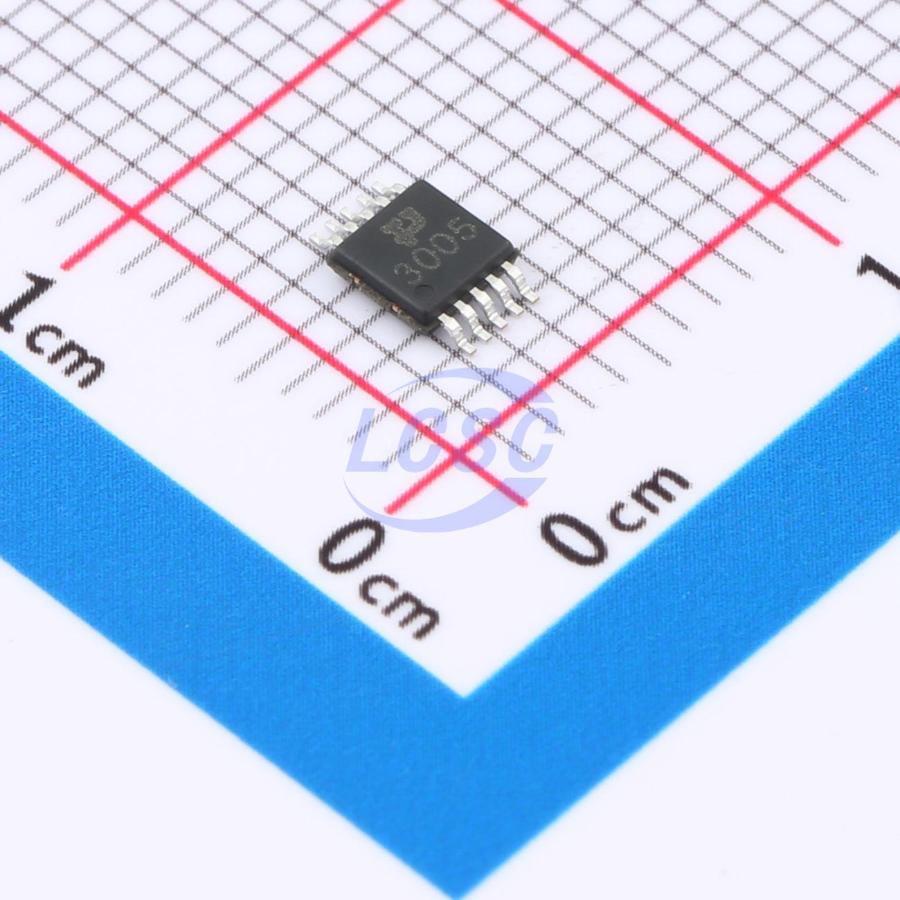

TPSGM3005XMS

2 Circuit IC SWITCH 1.8Ω MSOP-10L

MSOP-10LRoHSActive

Dual SPDT Analog Switch,2:1 Multiplexer / 1:2 Demultiplexer

Manufacturer: TECH PUBLIC
Manufacturer part #: TPSGM3005XMS
Store part #: C48543268
Package / case: MSOP-10L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,175 in stock

#C48543268

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹33.42	₹167.10
50+	₹26.66	₹1,333.00
150+	₹23.77	₹3,565.50
500+	₹20.16	₹10,080.00
2,500+	₹18.55	₹46,375.00
4,000+	₹17.58	₹70,320.00

Quantity (min 5, multiples of 5)

5 × ₹33.42

₹167.10

excl. GST

₹197.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPSGM3005XMS

₹167.10 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 1.8Ω
Number of Channels: 2
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

This device is a dual SPDT low on-resistance analog switch capable of operating from a single supply voltage of 1.5V to 5.5V. It features low on-resistance and excellent on-resistance matching, and employs a break-before-make mechanism to prevent signal distortion during channel switching. The device achieves true isolation — even when the COMx pin voltage exceeds VCC, only minimal current flows back to the supply.

Applications

Mobile phones, tablets, and laptops
USB Type-C microphone/ground switch
Audio, video, UART, USB2.0 signal and power routing
Telecom signal switching
Sample-and-hold systems

Key features

Low on-resistance, R(on) = 1.0Ω
Control pin compatible with 1.8V logic levels
High off-state isolation: -100dB @ 100KHz
COMx pin voltage can exceed VCC, enabling true isolation even during power failure
Low inter-channel crosstalk: -97dB @ 100KHz
High bandwidth (-3dB @ 500MHz) for USB2.0 high-speed signal routing
Ultra-low quiescent current (<2μA) with wide supply voltage range (1.5V ~ 5.5V)
Compact package: MSOP-10L
