TECH PUBLICDatasheet (PDF)

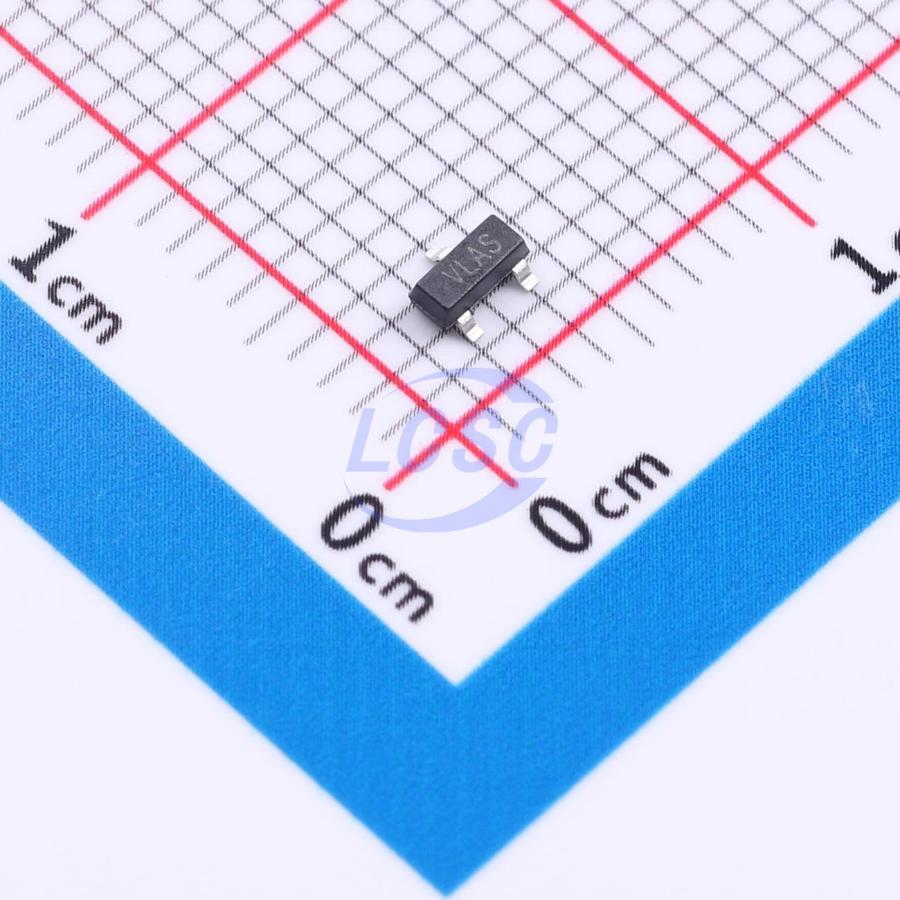

TPCAT809STBI-GT3
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPCAT809STBI-GT3
- Store part #
- C52098283
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C52098283
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.51 | ₹75.10 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.11 | ₹1,533.00 |
| 3,000+ | ₹4.51 | ₹13,530.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.51
₹75.10
excl. GST
₹88.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCAT809STBI-GT3
₹75.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instrumentation
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output at Vcc = 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMP809SEUR-TP#C52817112TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,650 | ₹8.12 · 6,650 in stock | View |
 | MAX809SN293D3T1G-TP#C52817135TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,520 | ₹15.61 · 2,520 in stock | View |
 | MAX809STRG-TP#C52817138TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 370 | ₹10.41 · 370 in stock | View |
 | TPADM809SARTZ#C52817187TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,600 | ₹21.38 · 1,600 in stock | View |
 | TPAPX809S-29SA#C52817200TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,940 | ₹7.89 · 2,940 in stock | View |
