TECH PUBLICDatasheet (PDF)

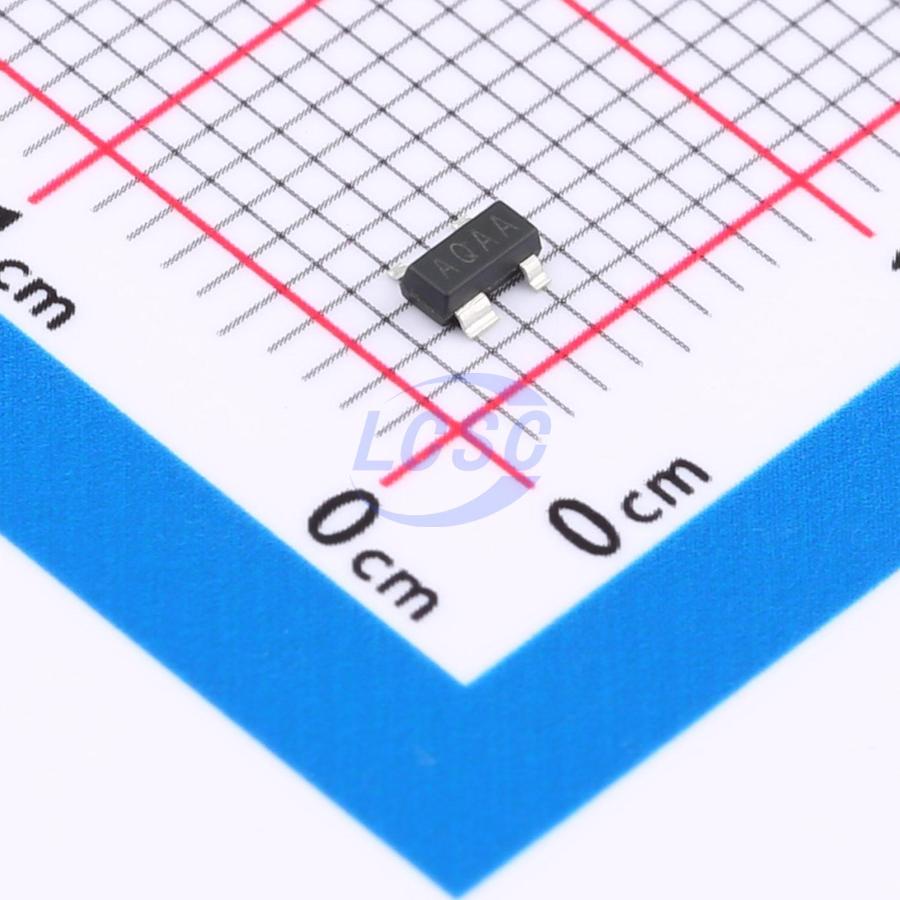

TPCAT811STBI-GT3
Supervisor Push-Pull 1 Channel SOT-143
SOT-143RoHSActive
Power Supply Supervisors with Manual Reset
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPCAT811STBI-GT3
- Store part #
- C42463694
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C42463694
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.63 | ₹98.15 |
| 50+ | ₹15.61 | ₹780.50 |
| 150+ | ₹13.60 | ₹2,040.00 |
| 500+ | ₹12.11 | ₹6,055.00 |
| 3,000+ | ₹10.90 | ₹32,700.00 |
| 6,000+ | ₹10.29 | ₹61,740.00 |
5 × ₹19.63
₹98.15
excl. GST
₹115.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCAT811STBI-GT3
₹98.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 140ms
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 6uA
- Voltage - Supply
- 1.2V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Battery-operated systems and controllers
- Embedded Control Systems
- Critical μP and μc power monitoring
- Portable / Battery powered equipment
- Automotive
Key features
- High Accurate ±5%
- Precision VCC Monitoring of +2.5V, +3V, +3.3V and +5V Supplies
- Power Supply Transient Immunity
- Guaranteed Reset Valid to VCC = +1V
- Fully Specified Over Temperature
- 6μA Supply Current
- Output Configuration: push-pull output
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX811R#C22358691TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 6,330 | ₹18.05 · 6,330 in stock | View |
 | MAX811S#C22358692TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 24,750 | ₹16.83 · 24,750 in stock | View |
 | MAX811T#C22358684TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 3,930 | ₹17.65 · 3,930 in stock | View |
