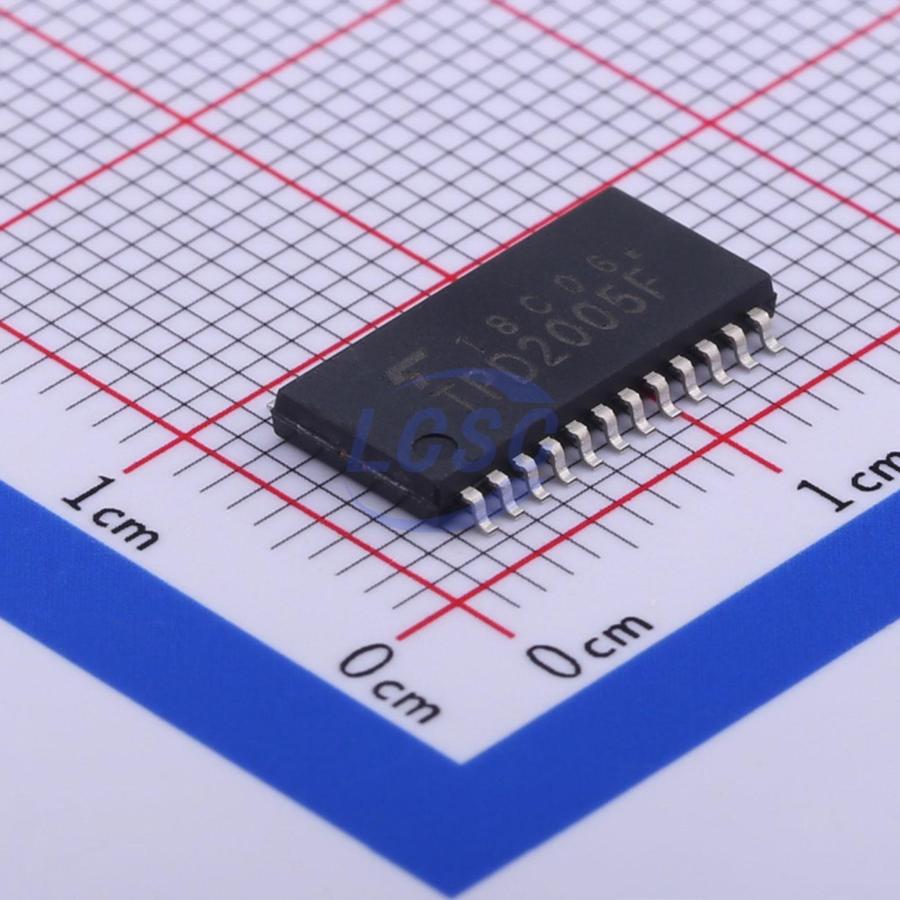

TOSHIBA

TPD2005F(EL,F)

8 Active High High Side Switch SSOP-24-300mil Power Distribution Switches, Load Drivers

SSOP-24-300milRoHSActive

High-Side Power Switch Array (8 Channels) for Motors, Solenoids, and Lamp Drivers

Manufacturer: TOSHIBA
Manufacturer part #: TPD2005F(EL,F)
Store part #: C386786
Package / case: SSOP-24-300mil
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,298 in stock

#C386786

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
1+	₹788.11	₹788.11
10+	₹672.79	₹6,727.90
30+	₹602.30	₹18,069.00
100+	₹543.33	₹54,333.00

Quantity (min 1)

1 × ₹788.11

₹788.11

excl. GST

₹929.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

TPD2005F(EL,F)

₹788.11 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Over temperature protection;Integrated charge pump
number of channels: 8
Control Input Logic: Active High
Operating Voltage: 8V~40V
RDS(on): 900mΩ
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.658 g

Overview

The TPD2005F is an 8-channel high-side switch array for vertical power MOSFET output. A monolithic power IC, it can directly drive a power load from a CMOS or TTL logic circuit (such as an MPU). It offers overcurrent and overtemperature protection functions.

Key features

A high-side switch array incorporating an N-channel power MOSFET (1.2 Ωmax.) and an 8-channel charge pump
Can directly drive a power load from a microprocessor
Built-in protection against overtemperature protection and overcurrent protection
8-channel access enables space-saving design
High operating supply voltage: 40 V
Low on resistance: 1.2 Ω max. (VDD = 12 V, IO = 0.5 A (per channel))
Supports parallel operation
Low supply current: 5 mA max. (VDD = 40 V, VIN = 0 V)
Supplied in an SSOP-24 package (300 mil) in embossed taping
Weight: 0.29g (typ.)
