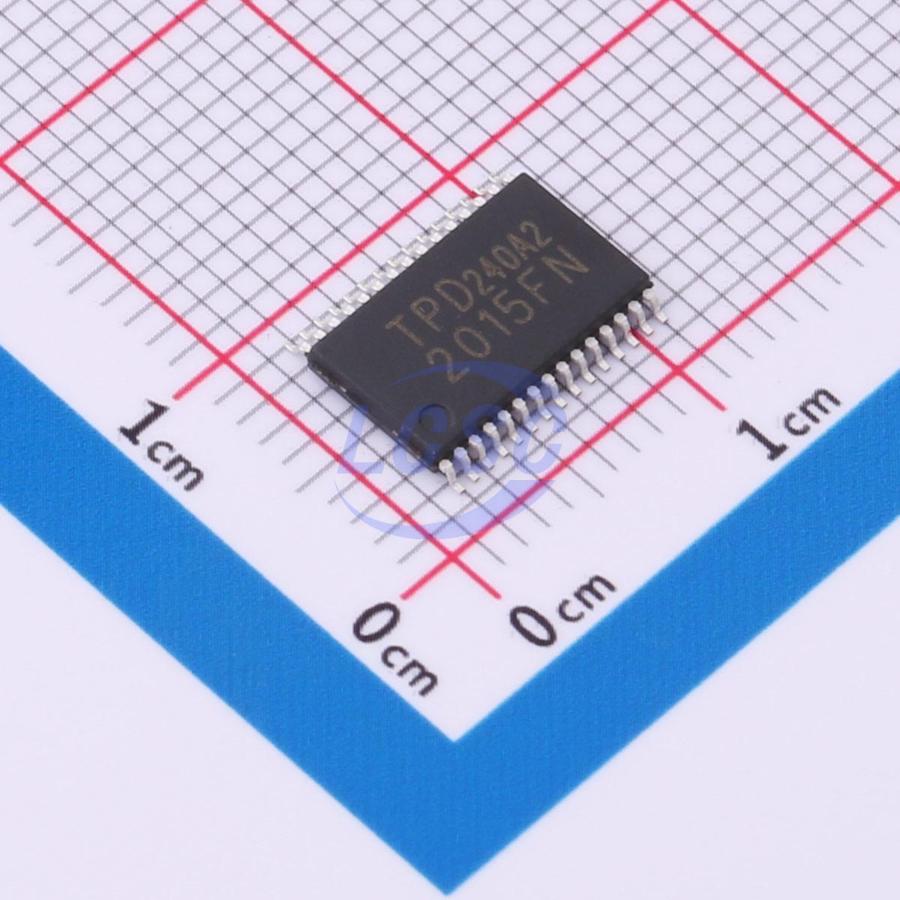

TPD2015FN,L1F(S
8 Active High 1A High Side Switch SSOP-30-300mil Power Distribution Switches, Load Drivers RoHS
SSOP-30-300milROHS3 CompliantActive
High side power switch array (8-channels) for motors, solenoids, lamp drives
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TPD2015FN,L1F(S
- Store part #
- C5353808
- Package / case
- SSOP-30-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,007 in stock
#C5353808
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹374.58 | ₹374.58 |
| 10+ | ₹315.52 | ₹3,155.20 |
| 30+ | ₹278.82 | ₹8,364.60 |
| 100+ | ₹241.04 | ₹24,104.00 |
| 500+ | ₹223.89 | ₹1,11,945.00 |
| 1,000+ | ₹216.72 | ₹2,16,720.00 |
1 × ₹374.58
₹374.58
excl. GST
₹442.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPD2015FN,L1F(S
₹374.58 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+110℃
- Features
- Overcurrent Protection;Over temperature protection;Integrated charge pump
- number of channels
- 8
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1A
- Operating Voltage
- 8V~40V
- RDS(on)
- 550mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.812 g
Overview
TPD2015FN is a high-side switch array (8-channels) with MOSFET outputs. This is the monolithic power IC that can be driven directly from CMOS, TTL logic circuitry (MCU, etc.) and have over current and over temperature protection features.
Applications
- Programmable logic controller for Industrial Use.
- Driving resistant load and inductive load
Key features
- 8-channels of N-channel MOSFET and charge pump are built-in.
- This IC can drive the power load directly.
- Built-in protection against over temperature and over current.
- 8-channels access enables space-saving design.
- High voltage operation is possible : 40 V
- Low on resistance : 0.55Ω (max) VDD = 12V, IOUT = 0.5A, Tj = 25°C (per channel)
- Parallel operation is possible.
- Package is SSOP30 (300 mil) and packing form is embossed taping.
