TOSHIBADatasheet (PDF)

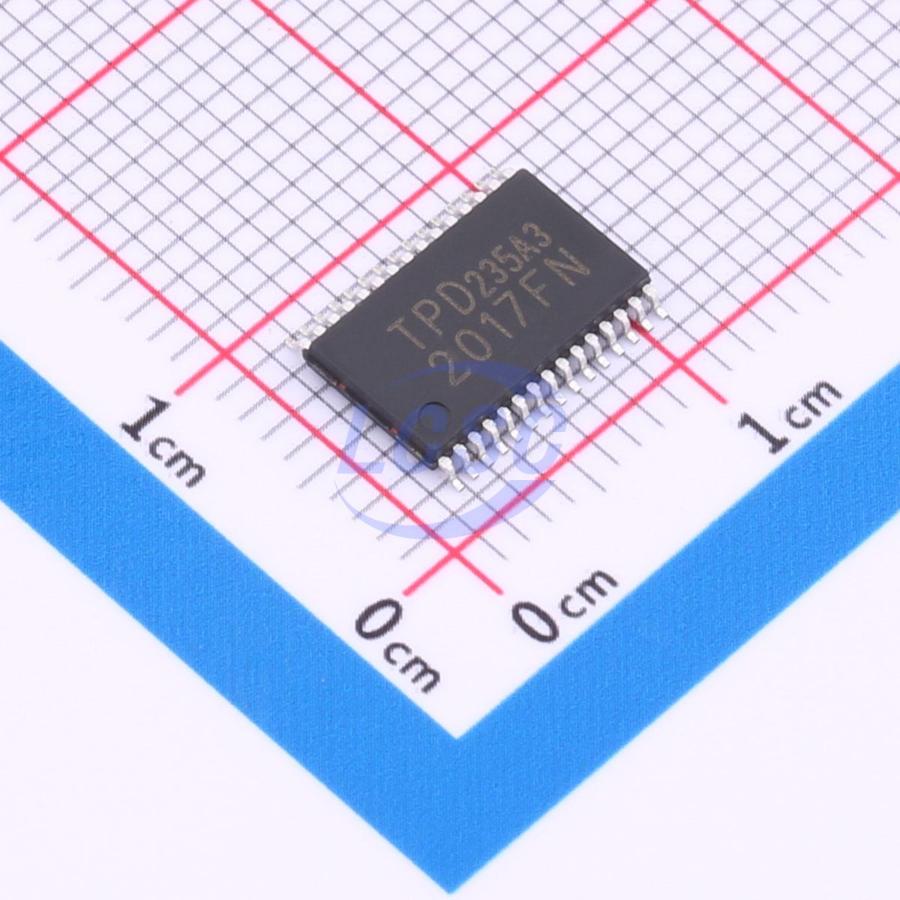

TPD2017FN,L1F(S
8 Active Low 1.5A Low Side Switch SSOP-30 Power Distribution Switches, Load Drivers RoHS
SSOP-30ROHS3 CompliantActive
Low side power switch array (8-channels) for motors, solenoids, lamp drives
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TPD2017FN,L1F(S
- Store part #
- C6916289
- Package / case
- SSOP-30
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,148 in stock
#C6916289
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹366.51 | ₹366.51 |
| 10+ | ₹314.15 | ₹3,141.50 |
| 30+ | ₹281.35 | ₹8,440.50 |
| 100+ | ₹247.68 | ₹24,768.00 |
| 500+ | ₹232.68 | ₹1,16,340.00 |
| 1,000+ | ₹225.94 | ₹2,25,940.00 |
1 × ₹366.51
₹366.51
excl. GST
₹432.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPD2017FN,L1F(S
₹366.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+110℃
- Features
- Overcurrent Protection;Over temperature protection
- number of channels
- 8
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 1.5A
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 550mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.824 g
Overview
TPD2017FN is a low-side switch array (8 channels) with MOS FET out. This is the monolithic power IC that can be driven directly from CMOS, TTL logic circuitry (MCUs, etc.) and have overcurrent and thermal protection features.
Applications
- Programmable logic controller for Industrial Use.
- Driving resistant load and inductive loads.
Key features
- 8-channels of N-channel MOSFET are built-in.
- This IC can drive the power load directly.
- Built-in protection against over temperature and over current.
- 8-channels access enables space-saving design.
- Low voltage operation is possible : 2.7 V
- Low on resistance : 0.55Ω (max), IOUT = 0.5A, Tj = 25°C (per channels)
- Parallel operation is possible.
- Built-in active clamp circuit.
- SSOP30 packaging (300 mils) is embossed taping.
