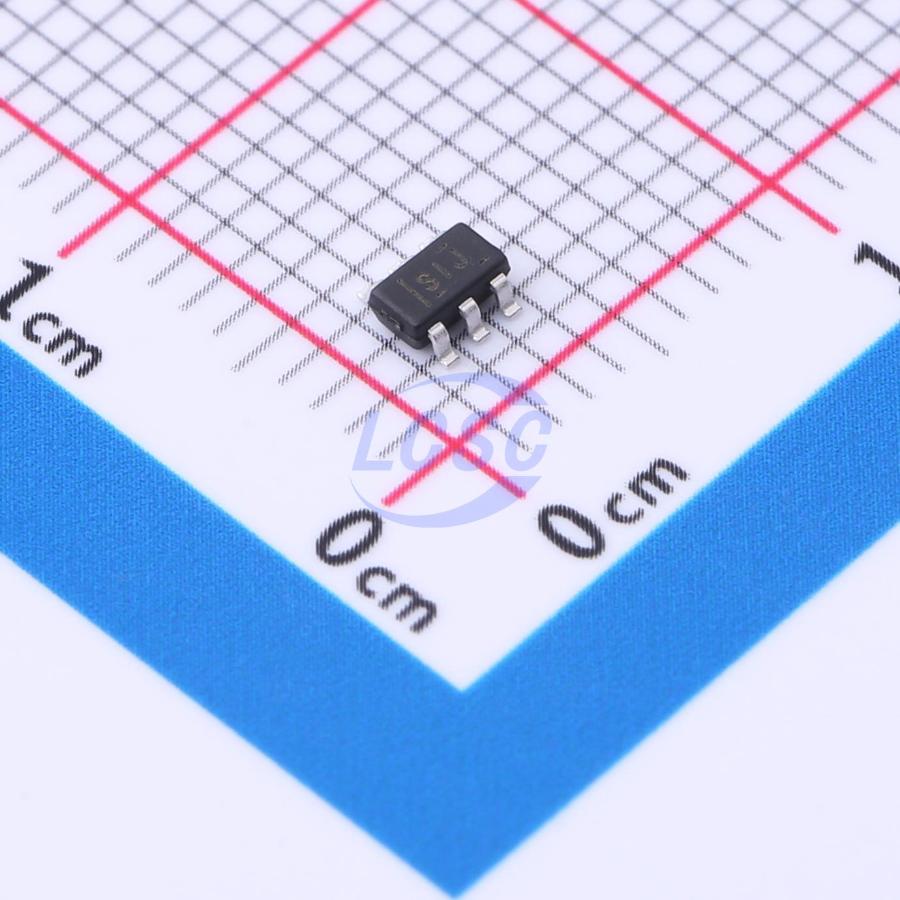

TPD3S044DBVR

1 4.5V~5.5V SOT-23-6 Current Regulation/Management RoHS

SOT-23-6ROHS3 CompliantActive

Current-limiting switch and D+/D- ESD protection for USB host ports

Manufacturer: TI
Manufacturer part #: TPD3S044DBVR
Store part #: C2155670
Package / case: SOT-23-6
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,839 in stock

#C2155670

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹77.50	₹77.50
10+	₹62.14	₹621.40
30+	₹54.56	₹1,636.80
100+	₹46.97	₹4,697.00
500+	₹42.45	₹21,225.00
1,000+	₹40.11	₹40,110.00

Quantity (min 1)

1 × ₹77.50

₹77.50

excl. GST

₹91.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPD3S044DBVR

₹77.50 for 1 + GST

Specifications

Number of Channels: 1
Voltage - Supply: 4.5V~5.5V
Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.065 g

Overview

The TPD3S0x4 integrated device is equipped with a current-limiting load switch and a dual-channel Transient Voltage Suppressor (TVS)-based Electrostatic Discharge (ESD) protection diode array, which is suitable for USB interfaces. The TPD3S0x4 device is suitable for applications where large capacitive loads and short circuits may occur (such as USB interfaces). The TPD3S0x4 can provide short-circuit protection and overcurrent protection. When the output load exceeds the current limit threshold, the TPD3S0x4 can limit the output current to a safe level by operating in the constant current mode. The fast overload response characteristic helps to relieve the burden on the 5V main power supply and can quickly regulate the power supply when the output is short-circuited. At this time, the rise and fall of the current-limiting switch are controlled to minimize the inrush current during the device switching process. The continuous currents of the TPD3S014 and TPD3S044 are 0.5A and 1.5A respectively. The rated ESD shock dissipation value of the TVS diode array is higher than the highest level specified in the IEC 61000 - 4 - 2 international standard. This highly integrated device uses an easy-to-route DBV package and can provide strong circuit protection for USB interfaces in applications such as portable computers, high-definition digital TVs, and set-top boxes.

Applications

USB ports/hubs
Portable computers, desktop computers
High-definition digital TVs
Set-top boxes

Key features

Continuous rated current: 0.5A and 1.5A
Constant current limit fixed at 0.85A and 2.15A (typical)
Fast overcurrent response – 2μs
Integrated output discharge
Reverse current blocking
Short-circuit protection
Overtemperature protection with auto-restart
Built-in soft-start
Ambient temperature range: -40°C to 85°C
UL recognized component per UL 2367, Standard for Solid-State Overcurrent Protectors
CB file number E169910 to IEC 60950-1, Information Technology Equipment
IEC 61000-4-2 Level 4 ESD protection (external pins)
±12kV contact discharge (IEC 61000-4-2)
±15kV air gap discharge (IEC 61000-4-2)
