TECH PUBLIC

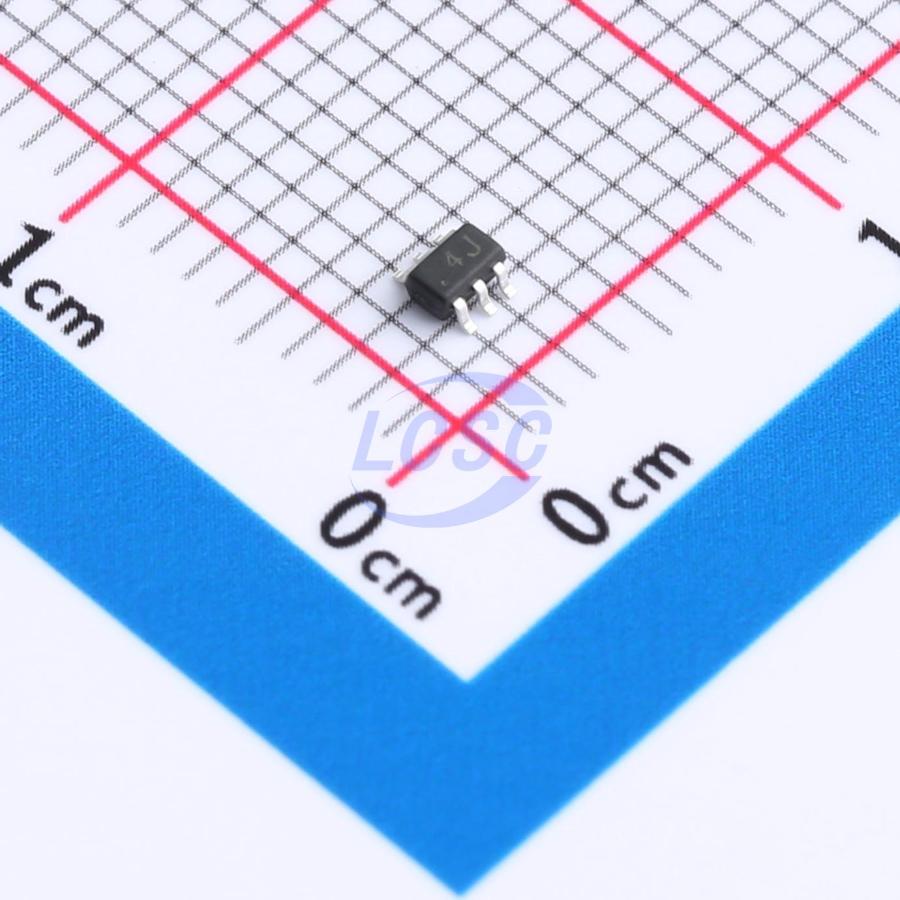

TPDG4599DL-T1-E3

1 6Ω 2V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TPDG4599DL-T1-E3
Store part #: C42449023
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,985 in stock

#C42449023

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.83	₹89.15
50+	₹15.57	₹778.50
150+	₹14.61	₹2,191.50
500+	₹13.39	₹6,695.00
3,000+	₹12.86	₹38,580.00
6,000+	₹12.53	₹75,180.00

Quantity (min 5, multiples of 5)

5 × ₹17.83

₹89.15

excl. GST

₹105.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPDG4599DL-T1-E3

₹89.15 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 6Ω
Voltage - Supply: 2V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.156 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 6.0Ω when A = 5V
1.8V Logic Compatible Control Pin
A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @300MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (<2uA)
With Very Wide Supply Range (2.0V~5.5V)
