TECH PUBLICDatasheet (PDF)

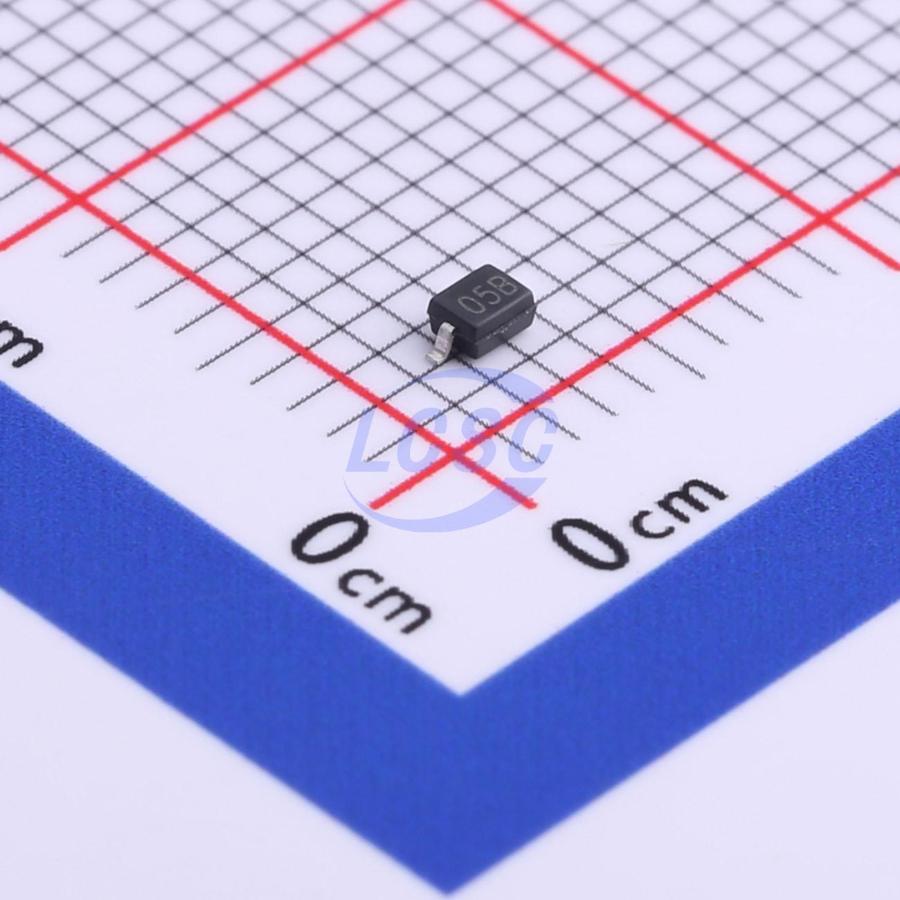

TPE05GHC
15VC Clamp 34A@8/20us Ipp SOD-323
SOD-323RoHSActive
5VWM 15VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE05GHC
- Store part #
- C708745
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C708745
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.85 | ₹68.50 |
| 100+ | ₹5.52 | ₹552.00 |
| 300+ | ₹4.84 | ₹1,452.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.49 | ₹20,940.00 |
| 9,000+ | ₹3.28 | ₹29,520.00 |
10 × ₹6.85
₹68.50
excl. GST
₹80.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE05GHC
₹68.50 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 34A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & tablets
- Portable instruments
- Peripherals
- Pager peripherals
- Desktops & servers
Key features
- 450W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra-low leakage: nanoamp-level
- Operating voltage: 5V
- Ultra-low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±30kV
- Contact discharge: ±30kV
- IEC 61000-4-4 (lightning surge) 34A (8/20ns)
