TECH PUBLICDatasheet (PDF)

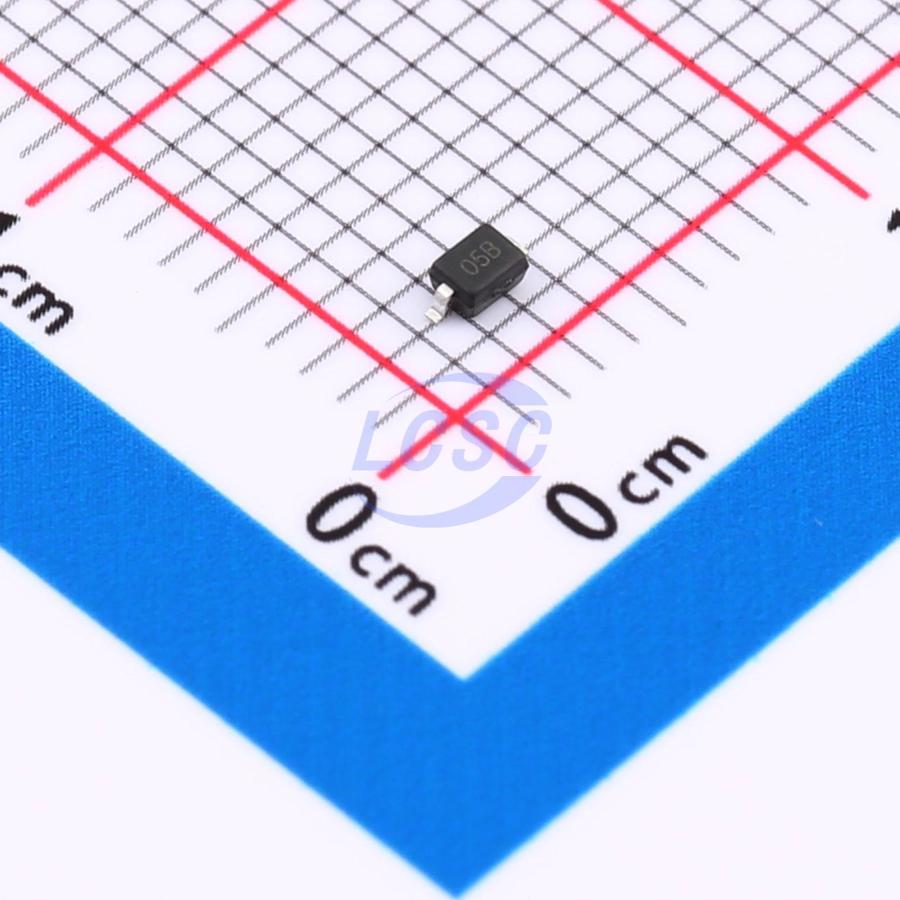

CDSOD323-T05SC
15VC Clamp 34A@8/20us Ipp SOD-323
SOD-323RoHSActive
5VWM 15VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- CDSOD323-T05SC
- Store part #
- C23380842
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,320 in stock
#C23380842
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.57 | ₹55.70 |
| 100+ | ₹4.38 | ₹438.00 |
| 300+ | ₹3.80 | ₹1,140.00 |
| 3,000+ | ₹3.35 | ₹10,050.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
10 × ₹5.57
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CDSOD323-T05SC
₹55.70 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 34A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals Pagers Peripherals
Key features
- 450W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 34A (8/20us)
