TECH PUBLICDatasheet (PDF)

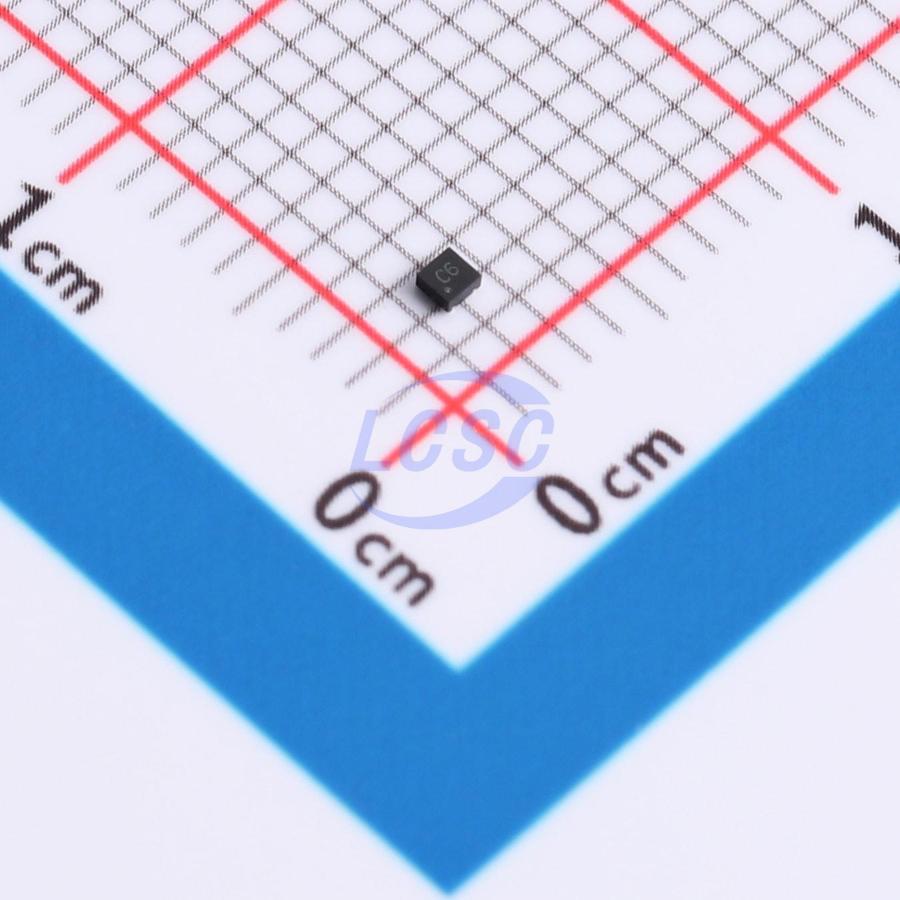

TPESD2CANFD24U-QBZ
40V 4A@8/20us 140W@8/20us 26.7V Bidirectional 24V DFN-3(1x1) TVS Diodes
DFN-3(1x1)RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD2CANFD24U-QBZ
- Store part #
- C53100513
- Package / case
- DFN-3(1x1)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C53100513
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 1,000+ | ₹4.71 | ₹4,710.00 |
| 5,000+ | ₹4.21 | ₹21,050.00 |
| 10,000+ | ₹3.96 | ₹39,600.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPESD2CANFD24U-QBZ
₹77.90 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.006 g
