TECH PUBLICDatasheet (PDF)

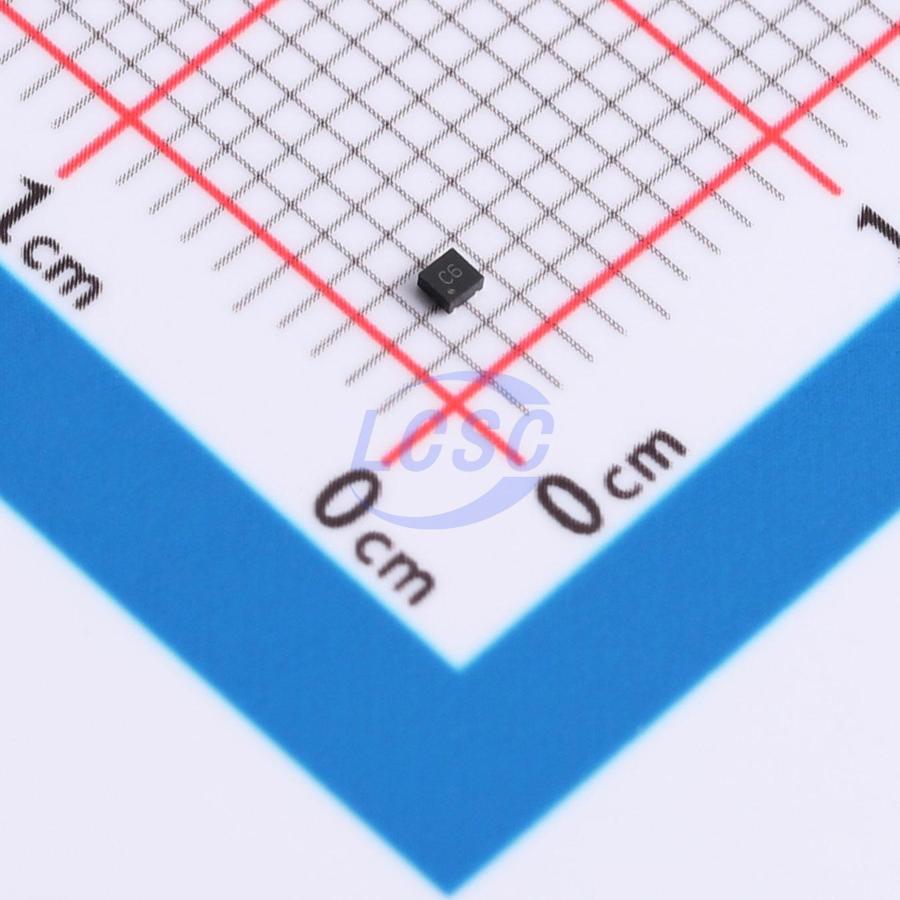

TPESD2CANFD24V-QBZ
40V 4A@8/20us 140W@8/20us 26.7V Bidirectional 24V DFN-3(1x1) TVS Diodes
DFN-3(1x1)RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD2CANFD24V-QBZ
- Store part #
- C53100512
- Package / case
- DFN-3(1x1)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C53100512
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.04 | ₹80.40 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 1,000+ | ₹4.82 | ₹4,820.00 |
| 5,000+ | ₹4.31 | ₹21,550.00 |
| 10,000+ | ₹4.05 | ₹40,500.00 |
10 × ₹8.04
₹80.40
excl. GST
₹94.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPESD2CANFD24V-QBZ
₹80.40 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.006 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD2CANFD24U-QBZ#C53100513TECH PUBLIC · DFN-3(1x1) | TECH PUBLIC | DFN-3(1x1) | 1,940 | ₹7.79 · 1,940 in stock | View |
 | TPESD2CANFD27V-QBZ#C53100514TECH PUBLIC · DFN-3(1x1) | TECH PUBLIC | DFN-3(1x1) | 9,490 | ₹8.11 · 9,490 in stock | View |
 | TPNUP2124MXWTBG#C53100546TECH PUBLIC · DFN-3(1x1) | TECH PUBLIC | DFN-3(1x1) | 2,000 | ₹8.02 · 2,000 in stock | View |
 | TPESD2CANFD27U-QBZ#C53100547TECH PUBLIC · DFN-3(1x1) | TECH PUBLIC | DFN-3(1x1) | 2,000 | ₹8.02 · 2,000 in stock | View |
