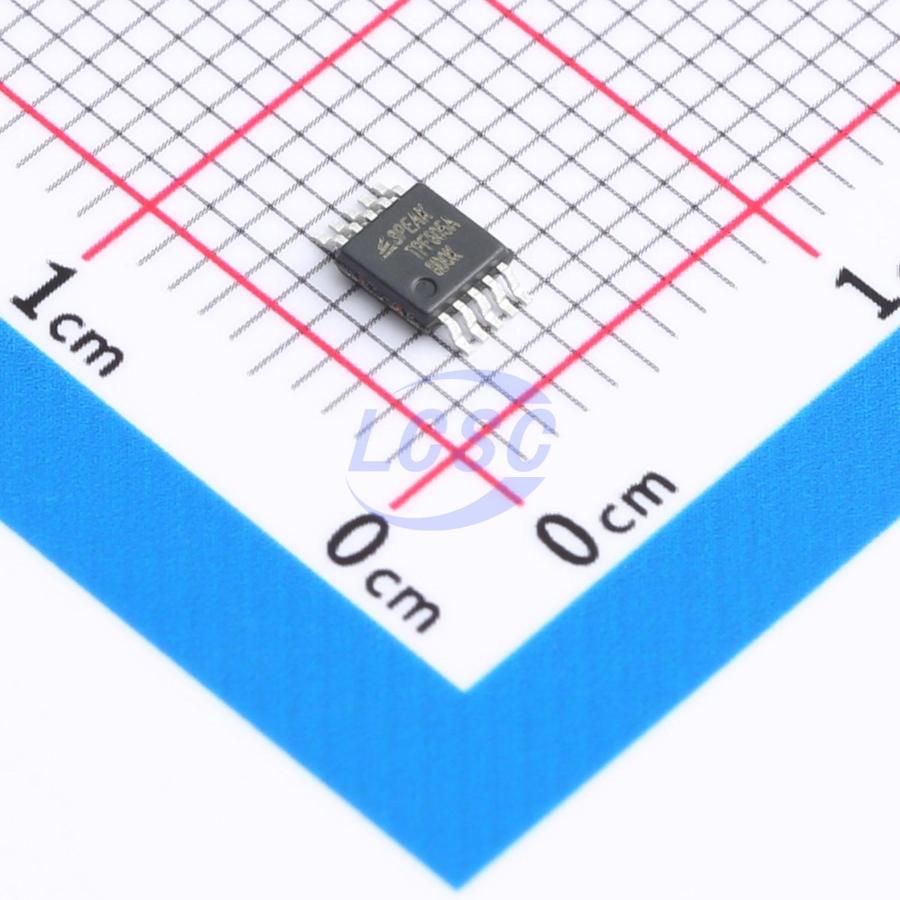

TPF605A-VR

The 3PEAK TPF632A/605A/607A are 3-VRMS pop-free stereo line drivers with the integrated charge pump generating the negative supply rail which allows the removal of the output DC-blocking capacitors. The devices are capable of driving 3-VRMS into a 2.5kΩ load with single 5V supply voltage. The TPF632A has differential inputs, the TPF605A/607A support single-ended inputs, and all can use external resistors for flexible gain setting. The 3PEAK TPF632A/605A/607A has built-in enable/shutdown control for pop-free on/off control. The TPF632A/605A has an external under-voltage detector that mutes the output when monitored voltage drop below set value. Using the TPF632A/605A/607A in audio products can reduce component count considerably compared to traditional methods of generating a 3-VRMS output. The device needs only a single 5V supply to generate 8.5-VPP output while traditional op-amp requires a split-rail power supply to achieve same. The device is ideal for single-supply electronics where size and cost are critical design parameters.

Applications

• Set-Top Box
• Blue-ray and HD DVD Players
• PDP TV and LCD TV

Key features

• 3-VRMS Output into 2.5kΩ Load with 5V Supply
• 2-VRMS Output into 2.5kΩ Load with 3.3V Supply
• Integrated Charge Pump Generates Negative Supply Rail
• SNR Enhanced
• PVDD Power Off Delay Function
• Low THD+N: 0.001%
• Drives 600Ω Load Stable with 220pF Capacitive Load
• Pop-Free Under-Voltage Protection (TPF632A/605A)
• Pop-Free Enable Control
• -40°C to 85°C Operation Range
• Robust 8kV (Output-Pin) HBM ESD Rating On All Pins
• Robust 2kV CDM ESD Rating
• Green, Popular Type Package
