TECH PUBLICDatasheet (PDF)

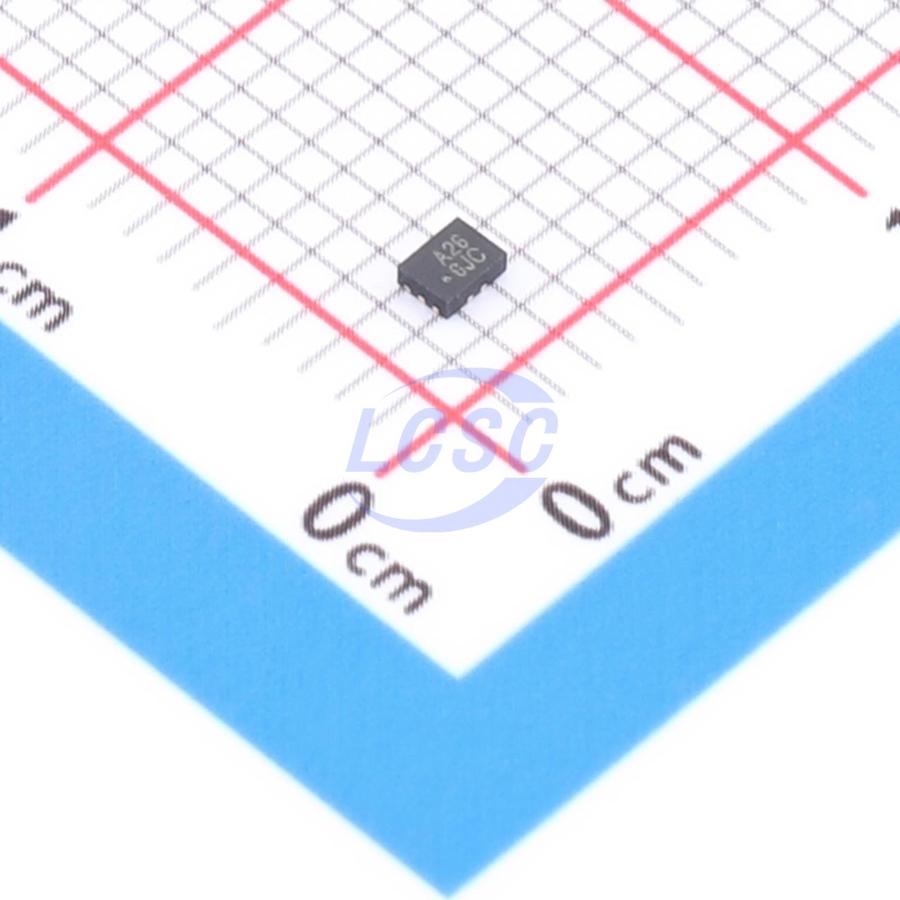

TPG7227YU
1.8Ω@5V 2 1.5V~5.5V QFN-10L(1.4x1.8) Analog Switches, Multiplexers, Demultiplexers
QFN-10L(1.4x1.8)RoHSActive
HighSpeed USB2.0(480Mbps）DPDT Analog Switch
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPG7227YU
- Store part #
- C42379167
- Package / case
- QFN-10L(1.4x1.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C42379167
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.12 | ₹205.60 |
| 50+ | ₹32.12 | ₹1,606.00 |
| 150+ | ₹28.26 | ₹4,239.00 |
| 500+ | ₹23.44 | ₹11,720.00 |
| 3,000+ | ₹21.30 | ₹63,900.00 |
| 6,000+ | ₹20.02 | ₹1,20,120.00 |
5 × ₹41.12
₹205.60
excl. GST
₹242.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPG7227YU
₹205.60 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 1.8Ω@5V
- Number of Channels
- 2
- Voltage - Supply
- 1.5V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
This device is a bidirectional, low-power, dual-port, high-speed USB 2.0 analog switch with integrated protection for USB Type-C systems. It is configured as a dual 2:1 or 1:2 switch, optimized for USB 2.0 DP/DM line use in USB Type-C systems. The device achieves true isolation — even when COM+/- exceeds VCC, only minimal current flows back to the supply. It features low inter-bit skew and high inter-channel noise isolation, and is compatible with multiple standards such as high-speed USB 2.0 (480 Mbps). Each switch is bidirectional with minimal or no attenuation of high-speed signals at the output. The bandwidth is sufficiently wide to transmit high-speed USB 2.0 differential signals (480 Mb/s) with excellent signal integrity.
Applications
- Mobile phones, tablets, and laptops
- Any application using USB Type-C or Micro-B connectors
Key features
- Low on-resistance: Ron = 1.5Ω at VCC = 5V
- 1.8V logic-compatible control pins
- High off-state isolation: -100dB at 100KHz
- COM+/- rail covers VCC, enabling true isolation even during power failure
- Low inter-channel crosstalk: -97dB at 100KHz
- High bandwidth (-3dB @800MHz) for USB2.0 high-speed signal routing
- Low quiescent current (<2uA) with wide supply voltage range (1.5V ~ 5.5V)
