TECH PUBLICDatasheet (PDF)

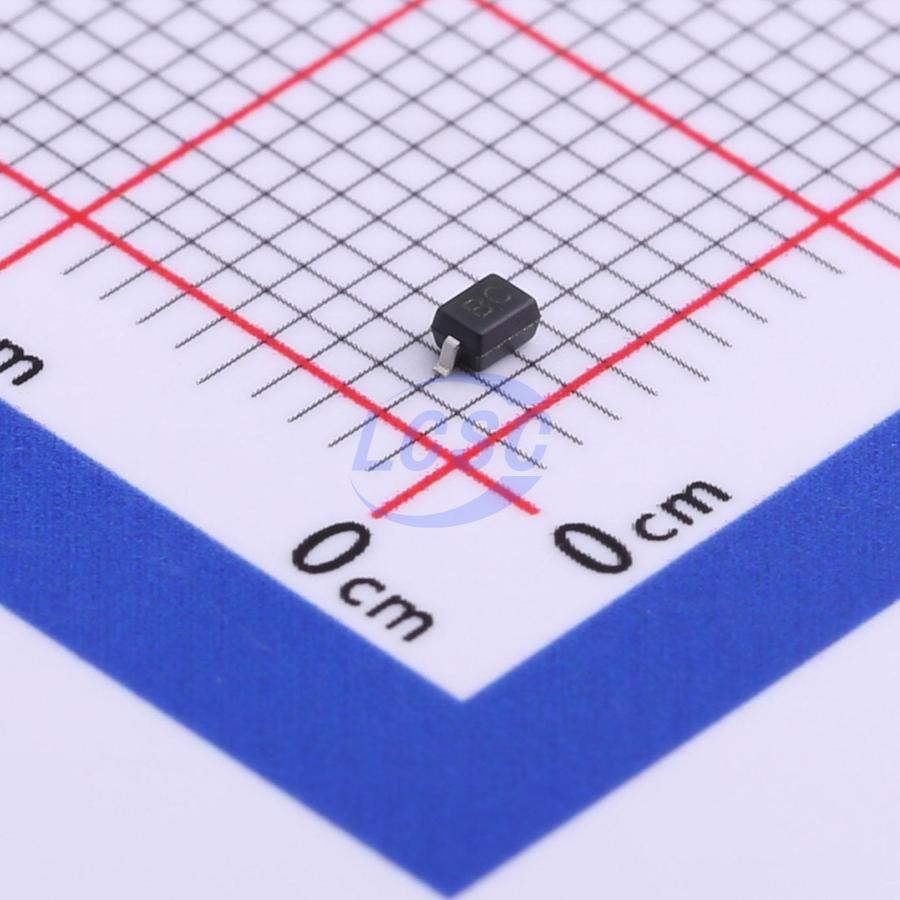

TPGBLC08C
19.5VC Clamp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 8VWM 19.5VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGBLC08C
- Store part #
- C587150
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
800 in stock
#C587150
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.22 | ₹92.20 |
| 100+ | ₹7.41 | ₹741.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹9.22
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGBLC08C
₹92.20 for 10 + GST
Specifications
- Clamping Voltage
- 19.5V
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 8.5V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
- Pagers Peripherals
- Desktop and Servers
Key features
- 350W peak pulse power (8/20μs)
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GBLC08C#C5350908TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 3,340 | ₹7.62 · 3,340 in stock | View |
 | GBLC08CI#C5350909TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 5,530 | ₹8.31 · 5,530 in stock | View |
 | BV08C#C5370946TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 4,090 | ₹8.78 · 4,090 in stock | View |
 | TPGC08C#C708756TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 100 | ₹8.73 · 100 in stock | View |
