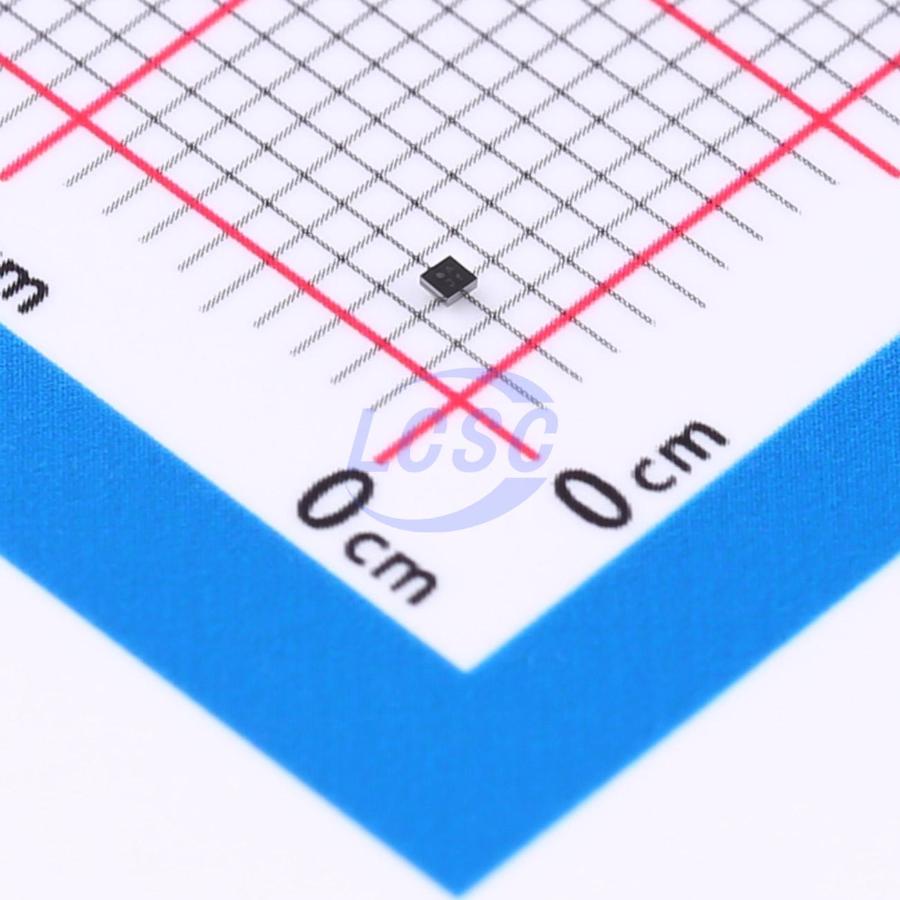

TECH PUBLIC

TPGLF71301TCSP4

1 Active High 2A High Side Switch CSP-4L(1x1) Power Distribution Switches, Load Drivers

CSP-4L(1x1)RoHSActive

Low Quiescent current Load Switch

Manufacturer: TECH PUBLIC
Manufacturer part #: TPGLF71301TCSP4
Store part #: C42449028
Package / case: CSP-4L(1x1)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,515 in stock

#C42449028

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.19	₹110.95
50+	₹17.38	₹869.00
150+	₹15.31	₹2,296.50
500+	₹12.74	₹6,370.00
3,000+	₹11.59	₹34,770.00
6,000+	₹10.90	₹65,400.00

Quantity (min 5, multiples of 5)

5 × ₹22.19

₹110.95

excl. GST

₹130.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPGLF71301TCSP4

₹110.95 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Overcurrent Protection;Over temperature protection;Soft-start;Reverse current blocking
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 2A
RDS(on): 38mΩ
Operating Voltage: 1.5V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.016 g

Overview

The is a single channel load switch with ultra-low on resistance MOSFET. It is designed for load switching applications with ultra-low quiescent current and ultra-low standby current. The device is controlled by external logic pin, allowing optimization of battery life, and portable device autonomy. The contains a P-channel MOSFET that can operate over an input voltage range of 1.2V to 5.5V and can support a maximum continuous current of 2A. The are available in a small 1 x 1mm CSP-4L Package. Standard products are Pb-free and Halogen-free.
