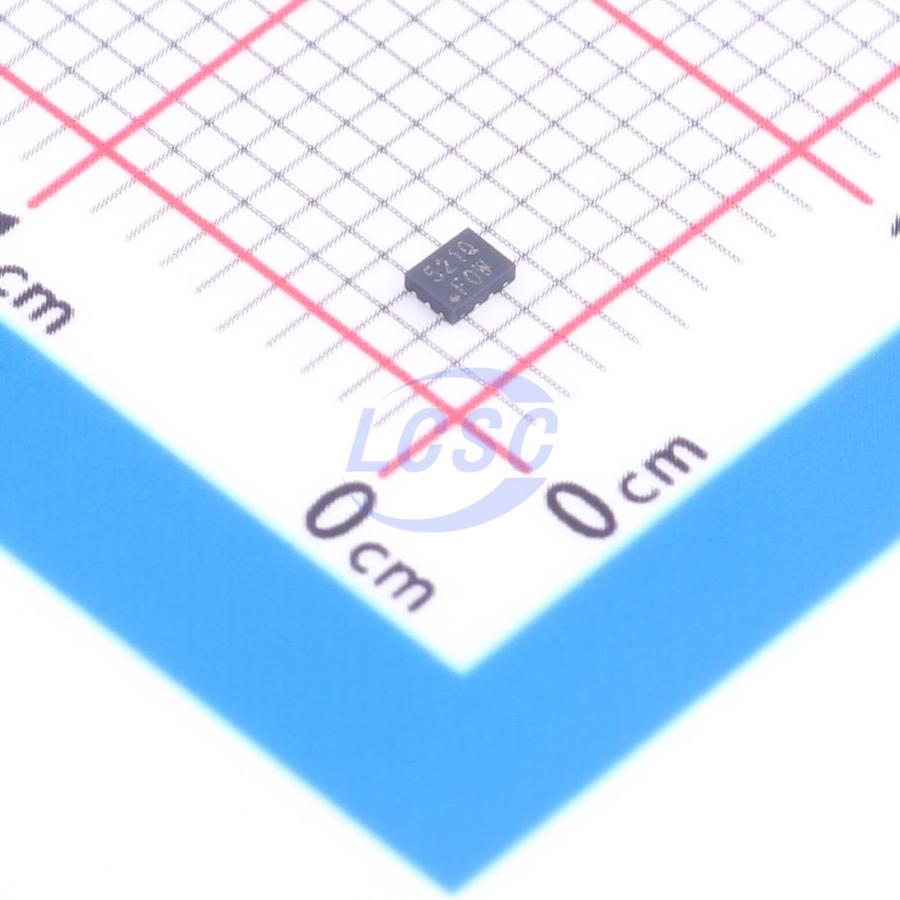

TECH PUBLIC

TPGT521YU

2.3V~5.5V 5Ω 2 Audio QFN-10(1.4x1.8) Analog Switches - Special Purpose

QFN-10(1.4x1.8)RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPGT521YU
Store part #: C54561918
Package / case: QFN-10(1.4x1.8)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,995 in stock

#C54561918

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹91.71	₹91.71
10+	₹73.68	₹736.80
30+	₹64.43	₹1,932.90
100+	₹55.63	₹5,563.00
500+	₹50.26	₹25,130.00
1,000+	₹47.47	₹47,470.00

Quantity (min 1)

1 × ₹91.71

₹91.71

excl. GST

₹108.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPGT521YU

₹91.71 for 1 + GST

Specifications

Turn-on time: 250us
Turn-off time: 2us
Voltage - Supply: 2.3V~5.5V
Ron: 5Ω
Number of Channels: 2
Operating Temperature: -40℃~+85℃
Applications: Audio
Con: 20pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

TPGT521YU is a 2-channel transfer switch. It operates from a 2.3V to 5.5V single supply, with an on-resistance of 0.85Ω for both SBU1 and SBU2 at 3.3V supply and ambient temperature TA = 25°C. The device is fabricated using submicron CMOS technology to achieve fast switching speed and is designed for break-before-make operation. TPGT521YU guarantees low on-resistance matching between switches, high on-resistance flatness across the signal range, high off-state isolation, and low crosstalk, ensuring excellent linearity and low distortion when switching audio signals. TPGT521YU consists of two normally-open switches and two normally-closed switches. TPGT521YU is available in an RoHS-compliant QFN 1.8×1.4-10 package.
