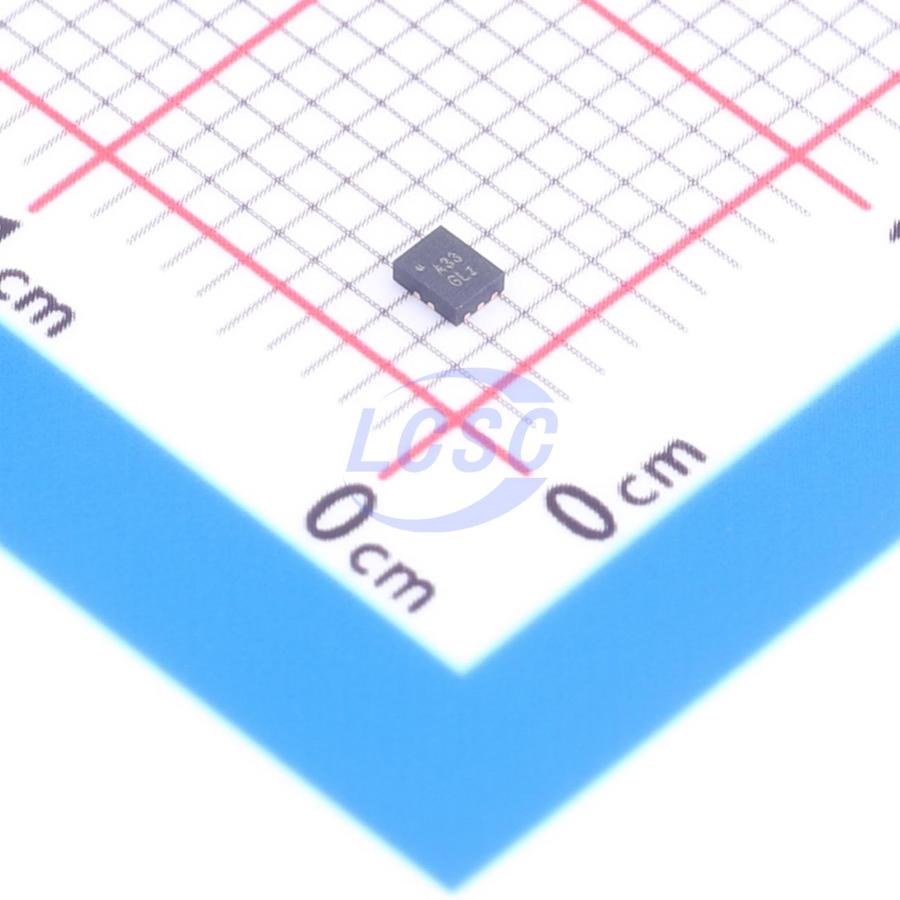

TPGY321YU

TPGY320YU/TPGY321YU is a high-performance DPDT multiplexer combining low-distortion audio and USB2.0 HS switching paths. This configuration enables audio and USB data to share a common connector port. The architecture allows audio signals to swing below ground, meaning analog audio through a USB-C connector is suitable for personal media players and portable peripherals. With a maximum high-voltage range of 18V on the VBUS pin, the TPGY320YU/TPGY321YU can be configured for automatic USB communication by connecting directly to VBUS via VBUS. The TPGY320YU/TPGY321YU includes overvoltage protection on the D+/R and D−/L pins to protect the internal ports. Typical applications include switching in portable and consumer devices such as mobile phones, tablets, laptops, and portable media players. The TPGY320YU/TPGY321YU is available in a QFN1418 package. Standard products are lead-free and halogen-free.

Applications

• USB Type-C Audio

Key features

• Single supply range: 2.5V ~ 4.5V
• VBUS pin voltage: 18V
• D+/R and D-/L pin overvoltage protection threshold: 4.75V
• Audio path on-resistance: 2.5Ω
• THD+N at 32Ω load and 0.7Vrms: -105dB
• SNR: 115dBA
• USB path -3dB bandwidth: 1000MHz
• USB path on-resistance: 6.5Ω
• Audio swing range (Rl = 1KΩ): 2.5Vrms
